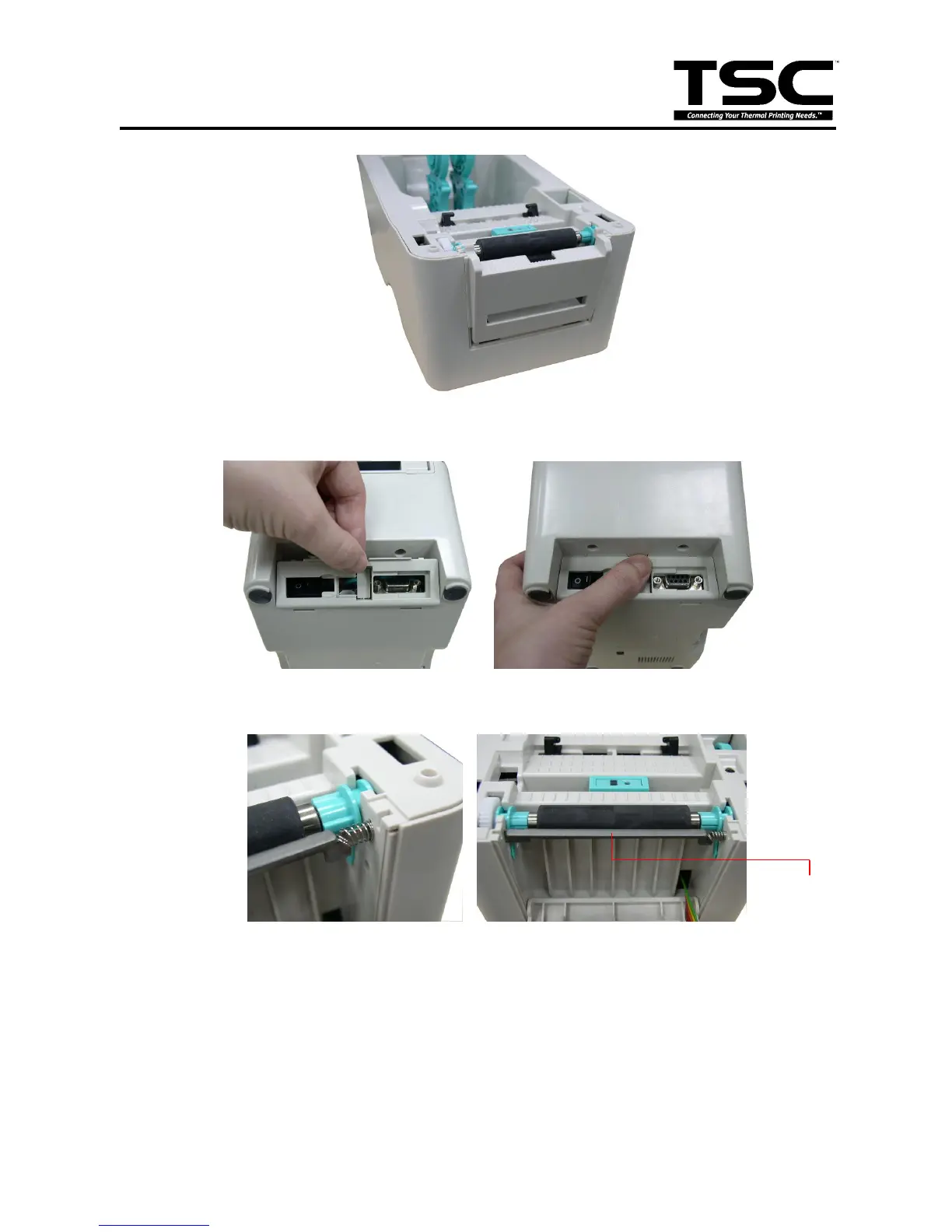

6. Insert the lower side of interface plate first then push the upper side of interface plate
to install it.
7. Open the top cover and peel-off cover. Install the peel-off bar into the both slots of
lower inner cover. Install the right side with spring first.
8. Place the printer in the flat and secured desktop for media loading and printing.
Peel-off bar
PUSH
