TSC TTP-286MT Series Service Manual

6
6
8
Centronics port FPC connector
9
TFT LCD panel FPC connector
10
KEY & LED connector
11
USB host internal connector (Reserve)
12
I2C internal connector (Reserve)
13
RFID module connector (4” 6pin / 6” or 8” 4pin)
14

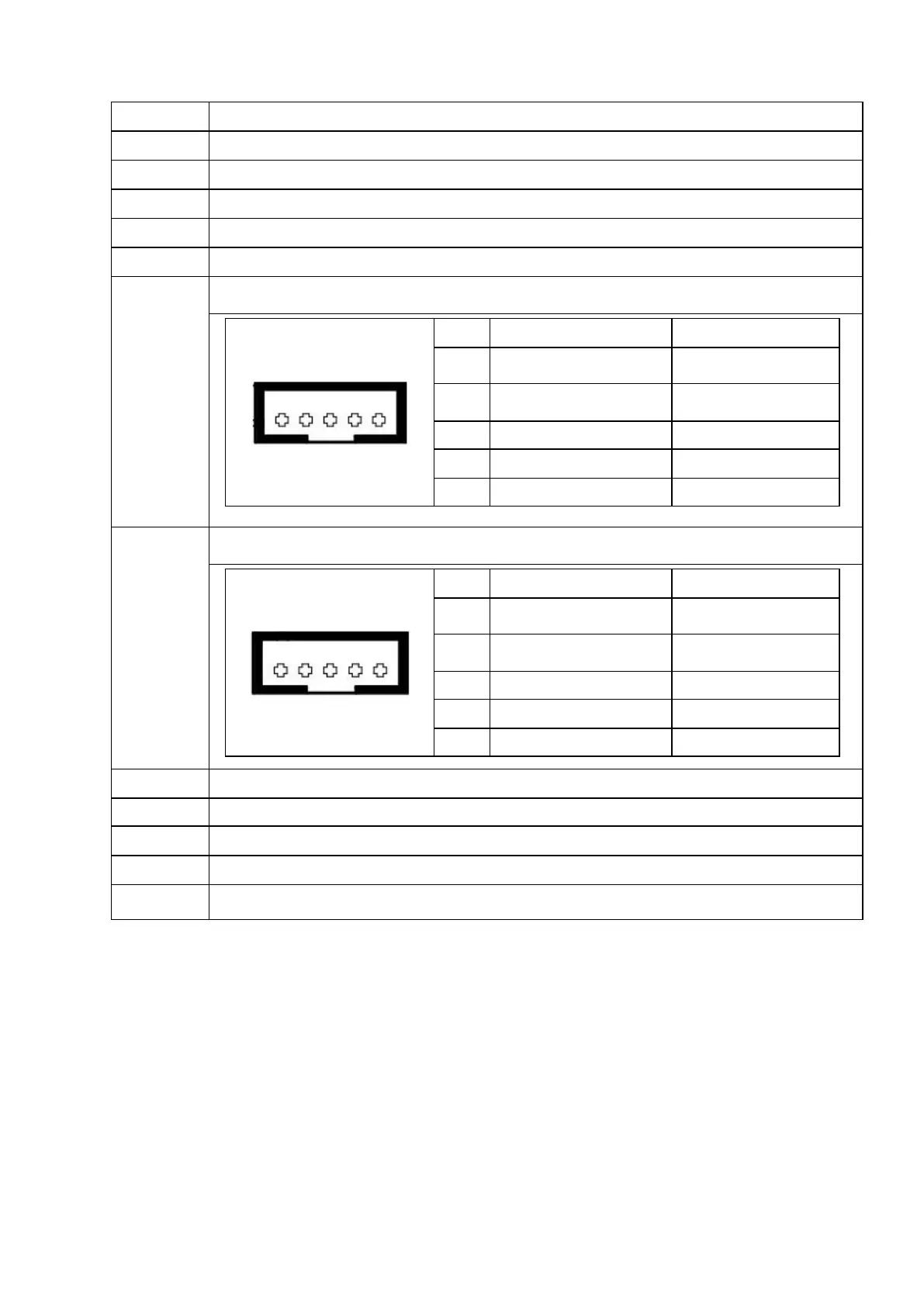

Ribbon recover sensor connector (For 6” 8” used only) (Blue)
Pin
Description
Voltage
1
Ribbon encoder sensor
emitter power pin
4.0~4.15V
2
Ribbon encoder sensor
receiver
A/D: 0~3.3V
3
GND
0V
4
DC motor signal pin
5
DC motor signal pin
15
Ribbon supply sensor connector (For 6” 8” used only) (Red)
Pin
Description
Voltage
1
Ribbon encoder sensor
emitter power pin
4.0~4.15V
2
Ribbon encoder sensor
receiver
A/D: 0~3.3V
3
GND
0V
4
DC motor signal pin
5
DC motor signal pin
16
Power supply output (24V DC) connector
17
Stepping motor connector
18
Print head data connector
19
Print head power connector
20
Cutter/peel-off sensor connector
5 4 3 2 1
5 4 3 2 1
