TSC TTP-286MT Series Service Manual

7
7
Note:

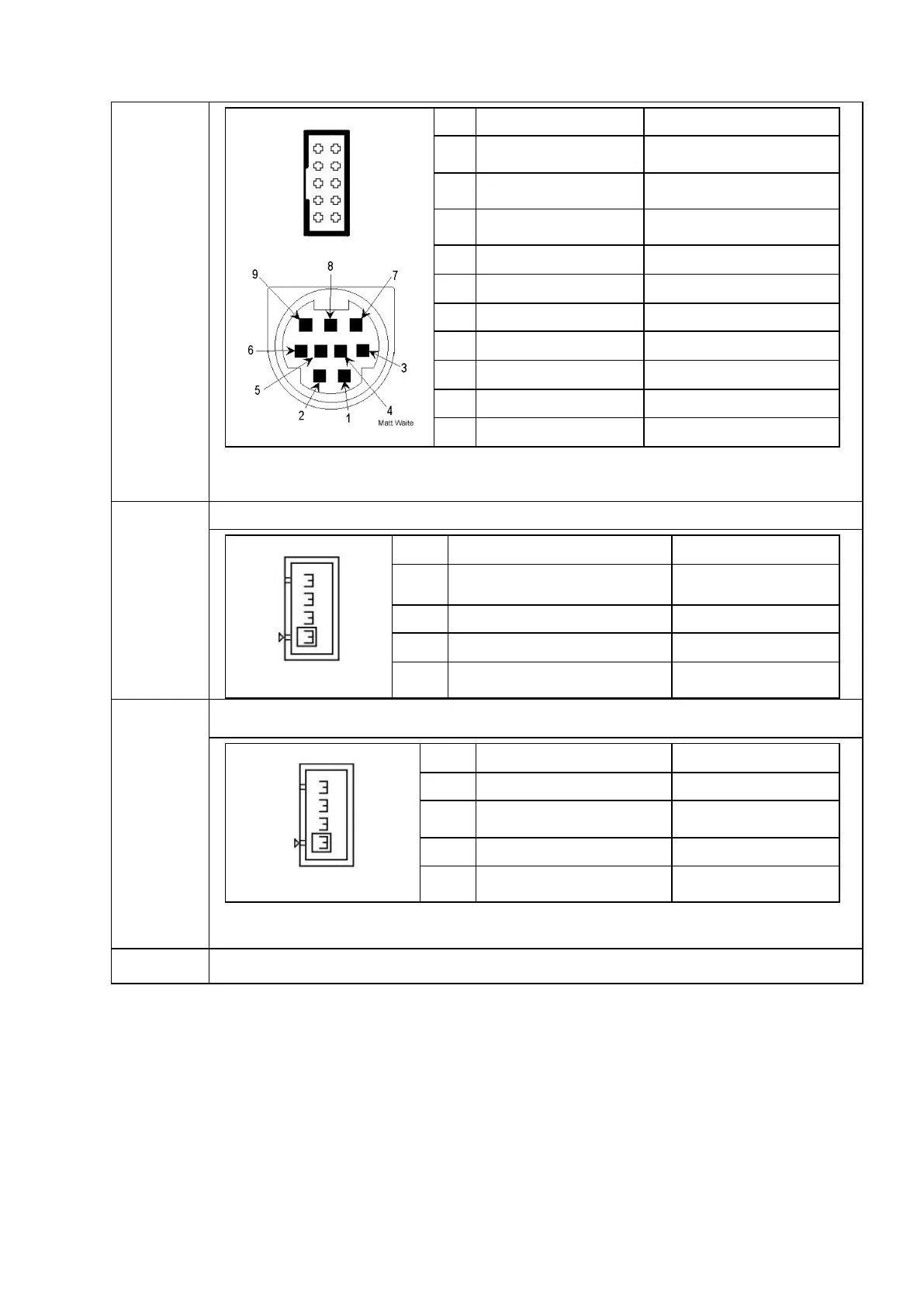

9 Pin Mini Din for cutter/peel-off module connector
Pin
Description
Voltage
1
Cutter enable
0V: Cutter work
5V: Cutter stop
2
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
3
Cutter position sensor
switch
0V: Cutter stop
3.3V: Cutter work
4
Peel sensor receiver
A/D: 0~3.3V
5
N/A
N/A
6
Logic power
5V
7
GND
0V
8
Cutter power
24V
9
I2C SCL signal
10
I2C SDA signal
21
Head open sensor connector
Pin
Description
Voltage
1
Head open sensor emitter
power pin
1.2~1.4V
2
GND
0V
3
Logic power
3.3V
4
Head open sensor receiver
0V: Head close
3.3V: Head open
22
Ribbon sensor connector
Pin
Description
Voltage
1
Ribbon sensor receiver
A/D: 0~3.3V
2
Ribbon sensor emitter
power pin
5V
3
GND
0V
4
Ribbon sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
23
Black mark sensor connector (For 6” 8” used only)
4
3
2
1
4
3
2
1
1 2
3 4
5 6
7 8
9 10
