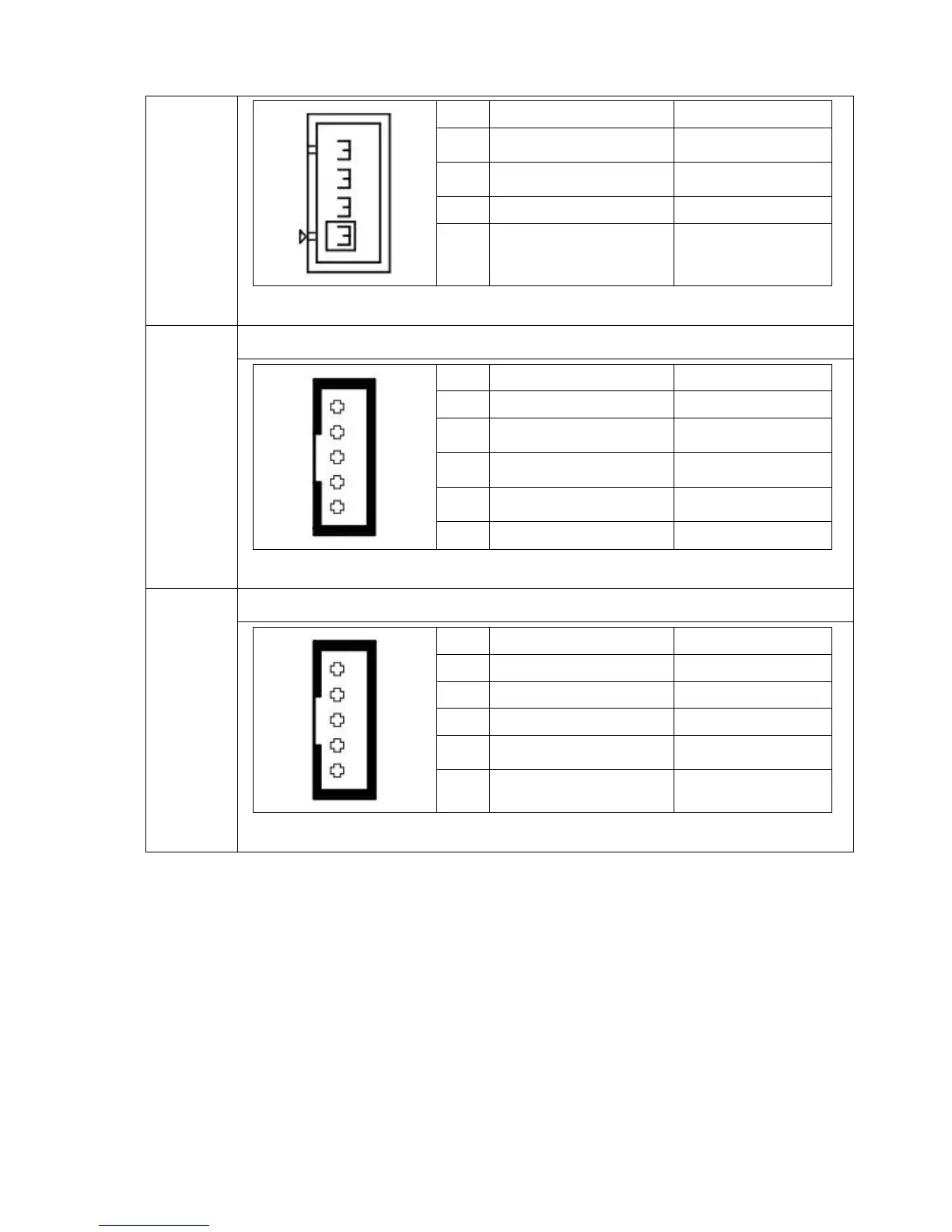

TSC TTP-368MT Series - Page 11

10
Pin
Description
Voltage
1
Black mark sensor
receiver
A/D: 0~3.3V
2
Black mark sensor emitter
power pin
5V
3
GND
0V
4
Black mark sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
24
Gap sensor connector
Pin
Description
Voltage
1
Power
5V
2
Gap sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
3
Black mark sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
4
Gap and black mark
sensor receiver
A/D: 0~3.3V
5
GND
0V
25
Rewind connector
Pin
Description
Voltage
1
Power
24V
2
Cutter direction signal
3
Cutter enable signal
4
Cutter position sensor
switch signal
5
GND
0V
5
4
3
2
1
5
4
3
2
1
4
3
2
1
