3.6 Replacing the Platen Roller Assembly

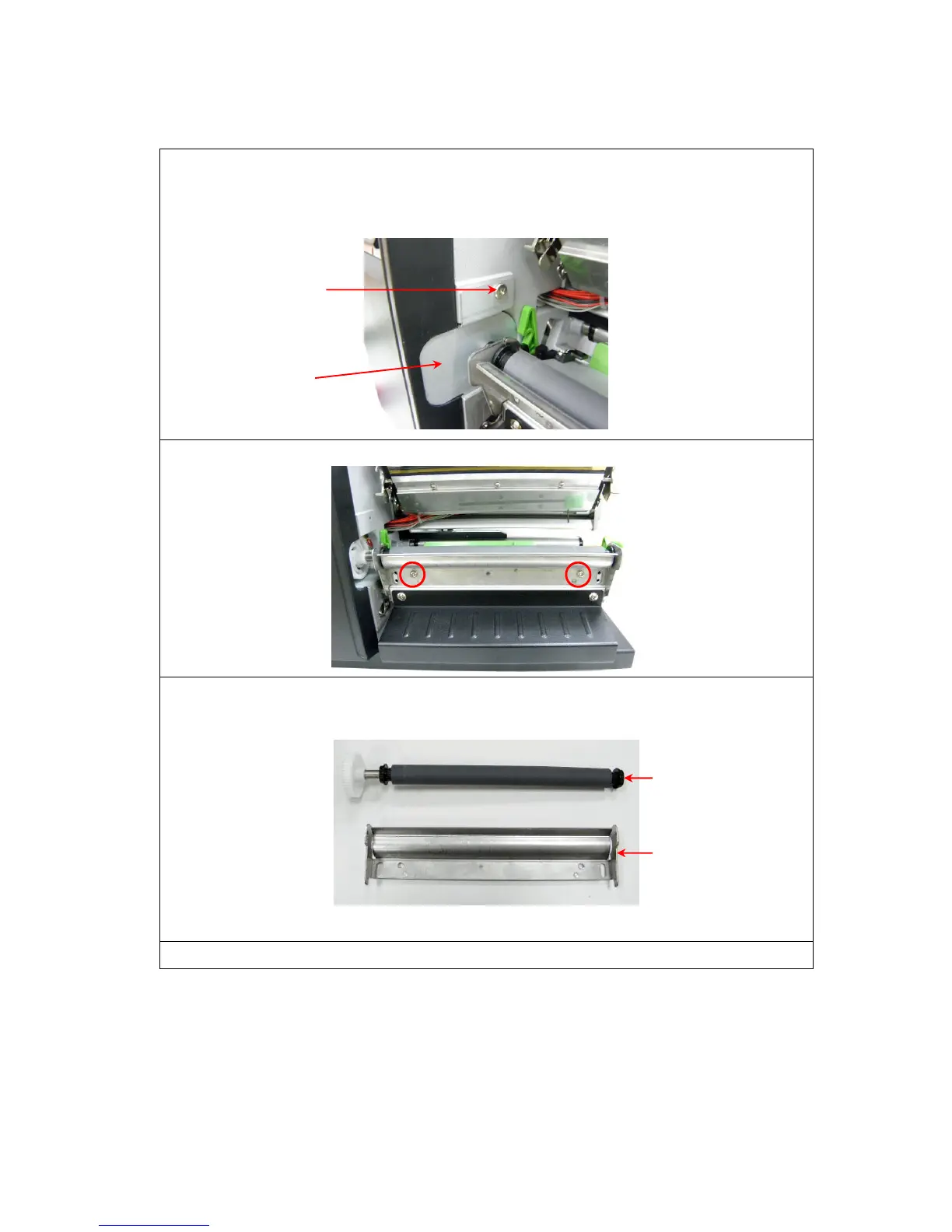

1. Open printer right side cover.
2. Disengage print head lift lever.
3. Remove the 1 screw to remove gear cover.
4. Remove 2 screws from the platen holder.
5. Take out the platen holder, platen roller assembly and replace a new platen
roller assembly.
6. Reassemble the parts in the reverse procedures.
Platen roller
assembly
Platen
holder
Screws
Gear cover
