Chapter 2
Once the RS232 connection has been created between the GP Flow
instrument and the computer, that connection can be tested using a
Terminal program.
The RS232 Settings to be
entered into the terminal
program are shown below.
RS232 Settings:
Baud Rate ......... 115,200 k
Data Bits ............ 8
Parity ................. None
Stop Bits ............ 1
Flow Control ...... None

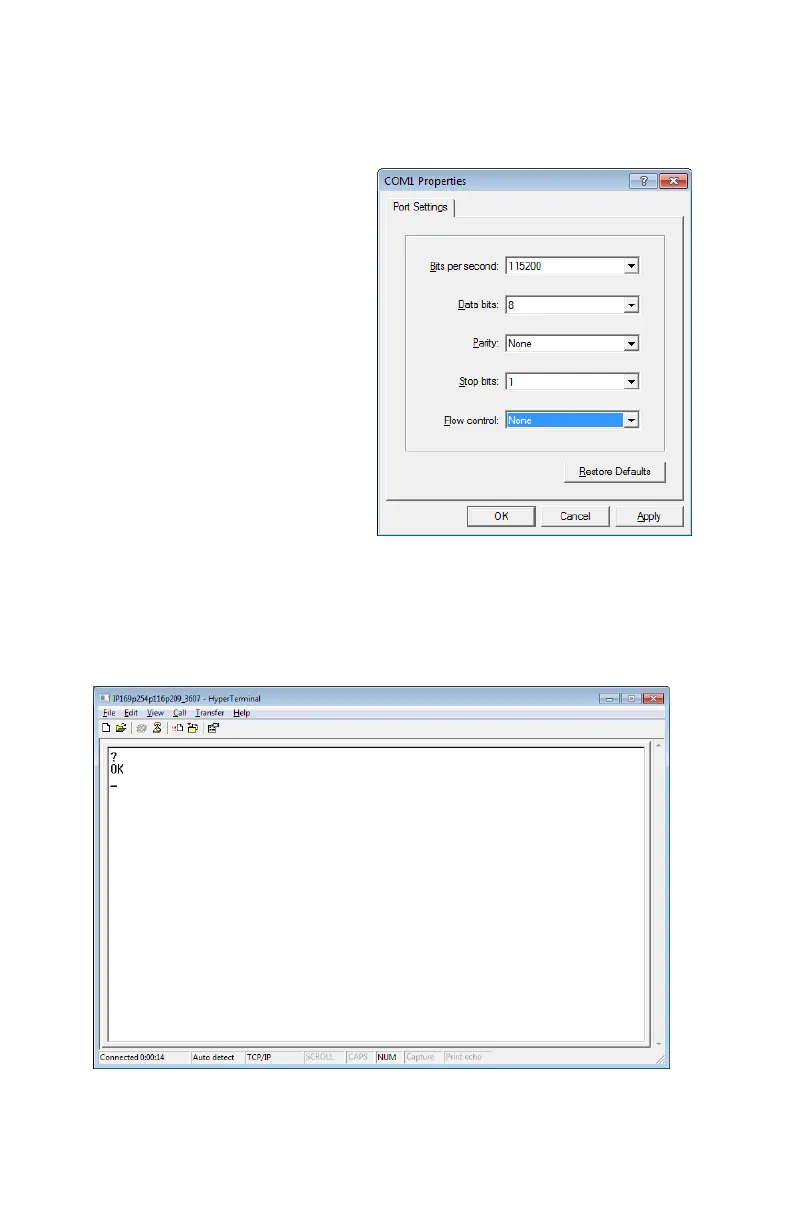

Enter the RS232 settings into
the terminal’s connection
dialog. This is shown in the
HyperTerminal
®
Connection
dialog shown at right.
Now, commands typed into the terminal will be relayed to the
instrument and responses presented in the terminal screen. If the
connection is working, the meter will respond to a question mark
command “?” with “OK”.
