TurboChef Eco Service Manual

Figure # Item Description Item Part Number Fastener Description
Fastener Part
Number(s)
1 Catalyst ECO-9066 None None
2 Door Switch (Monitor) 102013 SCREW, SEMS, #4-40 X 7/8, INT TOOTH, PPH, CRES 102905 (qty 2)
3
Heater, Helical, 1400W
Heater, Helical, 1700W
Heater, Helical, 2250W
i1-9655 (13Amp Ovens)
i1-9656 (16Amp Ovens)
i1-9657 (20Amp Ovens)
SCREW, #8-32 x ½ LG, PHTRHD, TYPE F, CRES 101364 (qty 2 each)
4 Heater Plate i1-9565
Screw, #8 X 1/2 Phillips, Truss, Type 17, Serrated,
410 SS
101688 (qty 10)
5 High Limit 102075 SCREW M 4 x 6 PPH SQ CO SEMS, ZINC 101672 (qty 2)
6 Hinge, Right ENC-3037-2
Stud, Rail Support
SCREW 8-32 X 3/8 PFLH, 100 DEG, SS
SCREW #8-32 x 1/4
HHB-8189
102809
102684
7
Kit, Switch Oset, Shim
and Replacement Tab
i1-3207 SCREW, SEMS, #4-40 X 7/8, INT TOOTH, PPH, CRES 102905 (qty 2)
8 Plate, Door Switch, S/M NGC-1126
SCREW, SEMS, #4-40 X 7/8, INT TOOTH, PPH, CRES
SCREW #8-32 X 3/8, PPHD, SEMS, SS
102905 (qty 2)
102921
9 Spring, Door Hinge
ENC-1691 (Included in
the ENC-3037-2 kit)
None None
10
Stop, Paddle, Door
Switch, Monitor
NGC-1324 SCREW, SEMS, #4-40 X 7/8, INT TOOTH, PPH, CRES 102905 (qty 2)
8
10
2
9
6

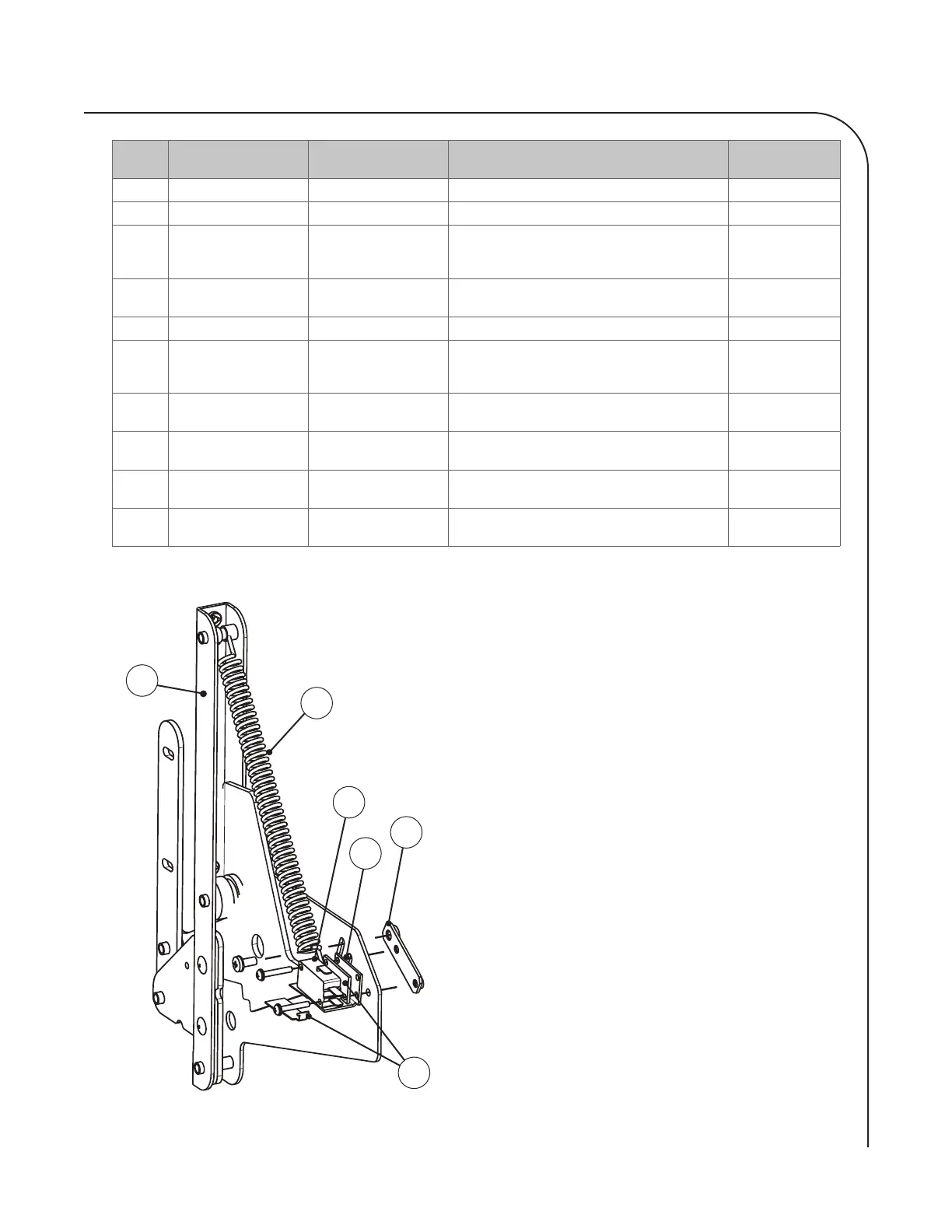

Figure A-7: Right Hinge/Monitor Switch Detail
7
APPENDIX - OVEN COMPONENTS
A-7

TurboChef Eco Specifications

General

Brand	TurboChef
Model	Eco
Exterior Finish	Stainless Steel
Voltage	208-240V
Frequency	60 Hz
Power Source	Electric
Category	Oven
Phase	1-Phase
Plug	NEMA 6-
Cooking Modes	Convection
Warranty	1 year
TurboChef Technology	Air impingement, microwave
