Head Lamp Aiming

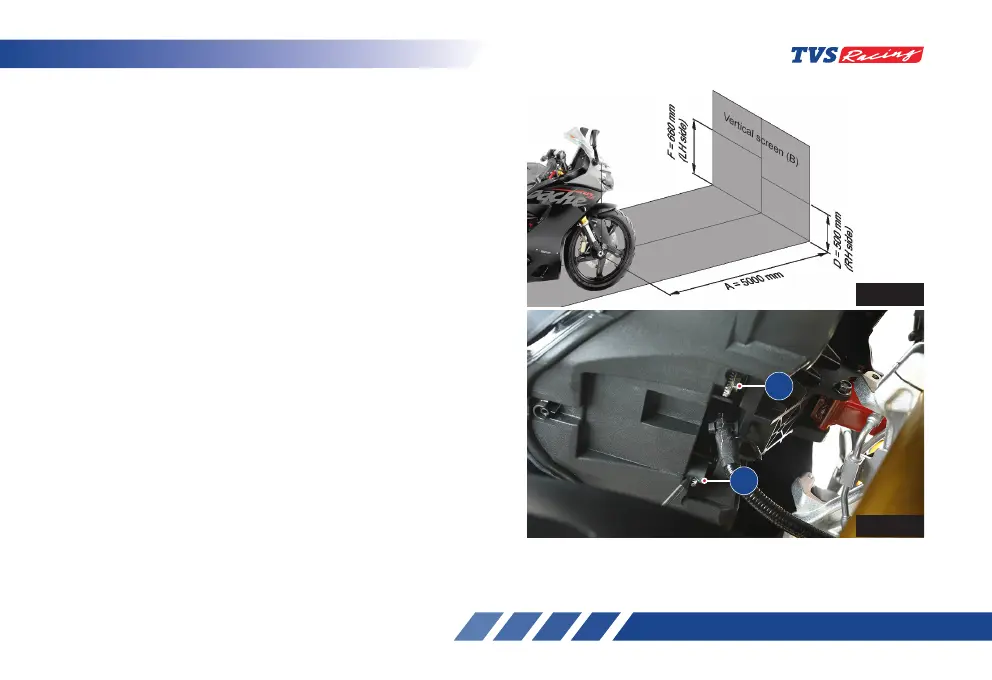

To check and adjust the head lamp focus:
• Place the motorcycle upright in a uniform flat
surface while ensuring the head lamp center (A)
is 5 meter away from a vertical wall or screen (B).
(ref. Fig. 43)
• Inflate the tyres to the correct pressure.
• Keeping the motorcycle at right angles to its
longitudinal axis switch on the ‘Low beam’ of
head lamp.
Two projector lamps need to be adjusted
independently as mentioned below:
a. RH side projector adjustment:
• Mask the LH side projector lamp using a black
color cloth.
• Adjust the RH side projector lamp adjuster
(C) clockwise (Downward) or in anti-clockwise
(Upward) and match the low beam cut-off line to
the marking line (D) (500 mm) on a vertical wall or
screen. (ref. Fig. 43 & 44)
b. LH side projector adjustment:
• Remove the cloth from LH side projector and
mask RH projector lamp.
* The specification for head lamp beam adjustment is
applicable only for India. Owner’s of other countries
are advised to adopt the local rules and regulations.
E
C
Fig. 43
Fig. 44
