34
TFT Instrument Cluster
Instrument cluster will be activated once the ‘ignition
lock’ is turned ON.
All segments and tell-tale indicators glow for 2
seconds on activation of instrument cluster for
checking and ensuring the proper working of
segments and indicators.
Following are the features of instrument cluster:

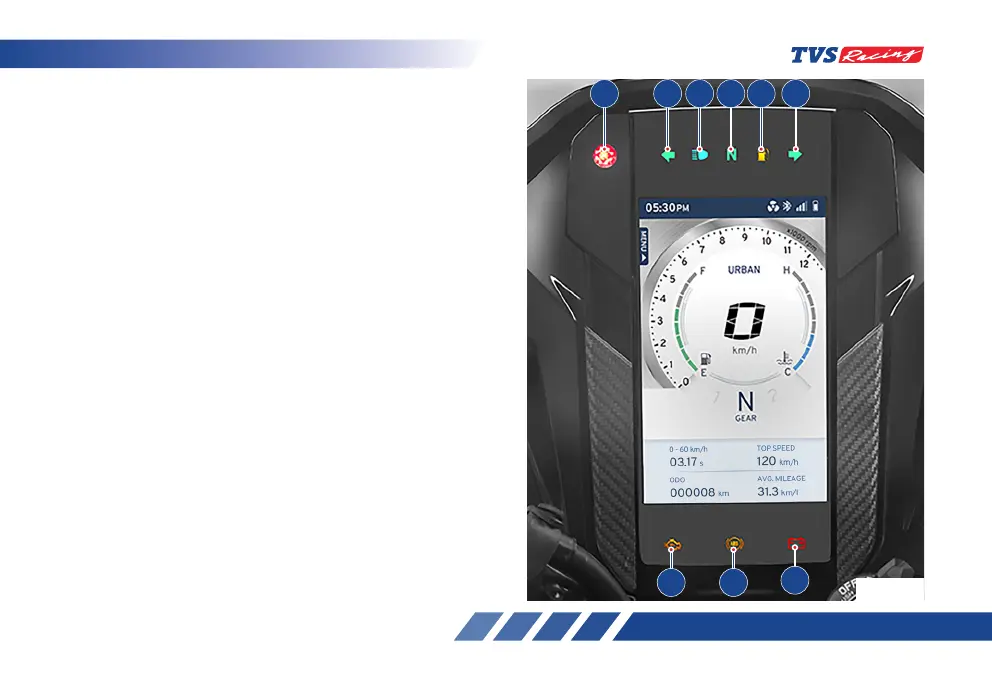

1) Warning and indicator lights (ref. Fig. 20)
A) Gear shift / Rev indicator / Photo sensor
B) Turn signal indicator LH
C) High beam indicator
D) Neutral indicator
E) Low fuel warning indicator
F) Turn signal indicator RH
G) Low battery indicator
H) ABS indicator
I) EMS malfunction indicator
A B C D E F
I H
G
Fig. 20
