Auxiliary Stand (Paddock Stand)

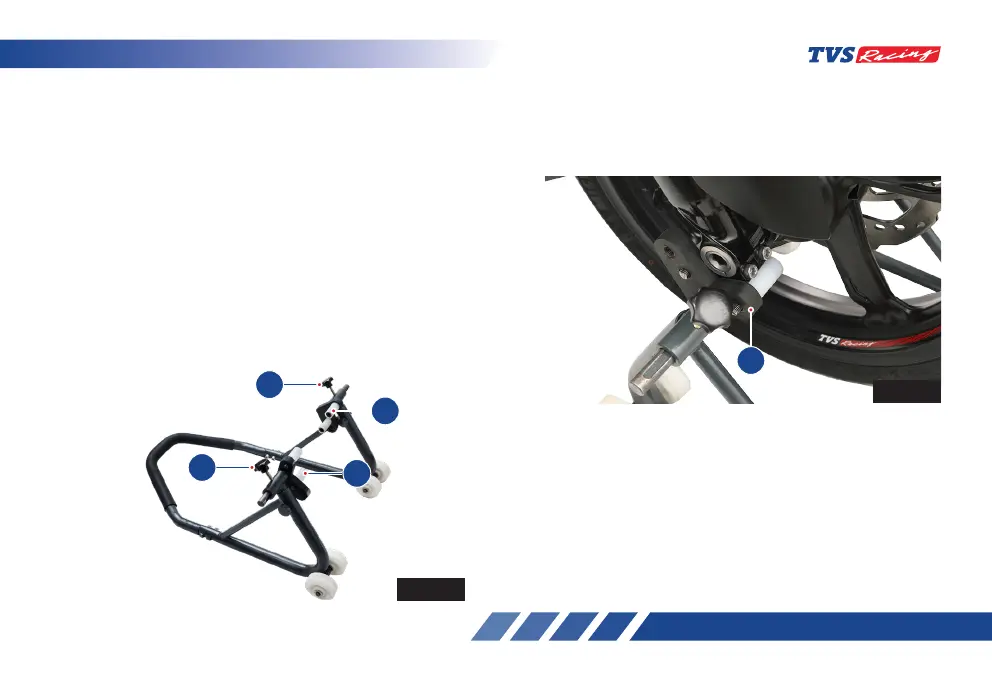

Front wheel stand (ref. Fig. 79, 80 & 81)
Place the motorcycle on its centre stand (if applicable)
or on rear wheel stand (ref. page 163) on a flat firm
surface.
Use the auxiliary stand supplied for lifting the front
wheel (the stand is an accessory and it is available
with the TVS Motor Company Authorised Main
Dealer).
• Loosen the clamping screws (1) of the stand
adopters.
• Move away the adopters (2 & 3) in such way that
the front forks fit between them.
• Centre the stand relative to the front wheel and
push it against the front axle.
• Align the two adapters (2a & 3a) so that the front
forks are securely seated.
