Rear Wheel
Ensure the safety precautions listed in the page
127 are followed properly.
Removal
• Carefully place the motorcycle in auxiliary stand
(paddock stand ref. page 161) or centre stand
(if available).
• Place a support below the rear wheel to avoid
falling of wheel after removing the quick release
axle.

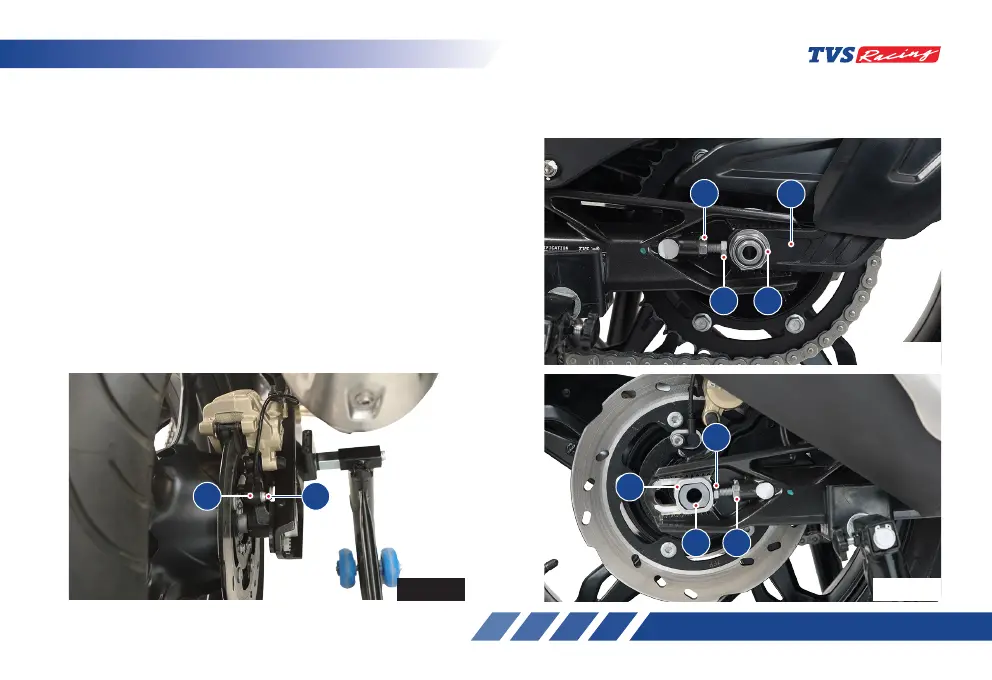

• Remove the mounting screw (1) from the speed
sensor mounting and carefully take out the speed
sensor (2). (ref. Fig.64)
• Remove the axle mounting nut (3, ref. Fig 65)
using the proper tool from the tool kit (ref. page
160).
2 1
4
8
6
10
7
5
3
9
Fig. 64
Fig. 65
Fig. 66
