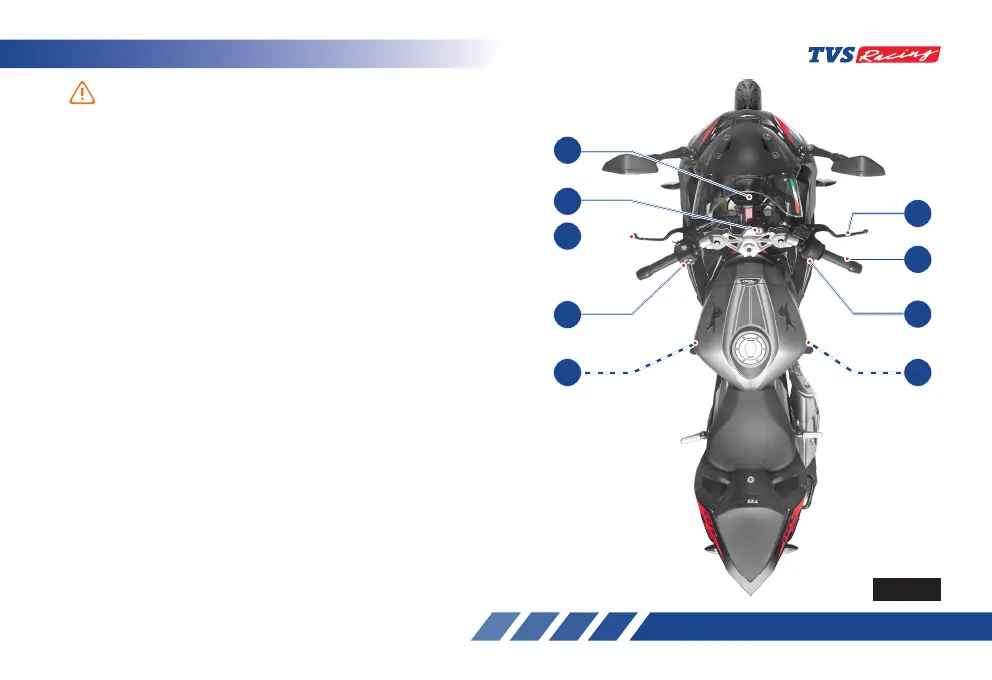

Controls (ref. Fig. 06)
1) Instrument cluster (ref. page 32)
2) Ignition cum steering lock (ref. page 20)
3) Clutch lever (ref. page 21)
4) Switch assembly LH (ref. page 22)
5) Gear shift pedal (ref. page 27)
6) Rear brake pedal (ref. page 28)
7) Switch assembly RH (ref. page 29)
8) Throttle twist grip (ref. page 30)
9) Front brake lever (ref. page 31)
2
1
3
4
5
This section shows the position and function of the
controls used to ride your motorcycle. Read this section
carefully before riding the motorcycle.
9
6
7
8
* Hidden items are marked with dotted lines
Fig. 06
