Fuses
The electrical components of your motorcycle are
protected by six fuses housed inside a fuse box and
located below the rider seat.
To access the fuses, park the motorcycle on a flat and
firm surface and remove the pillion and rider seats as
explained in page no. 99.

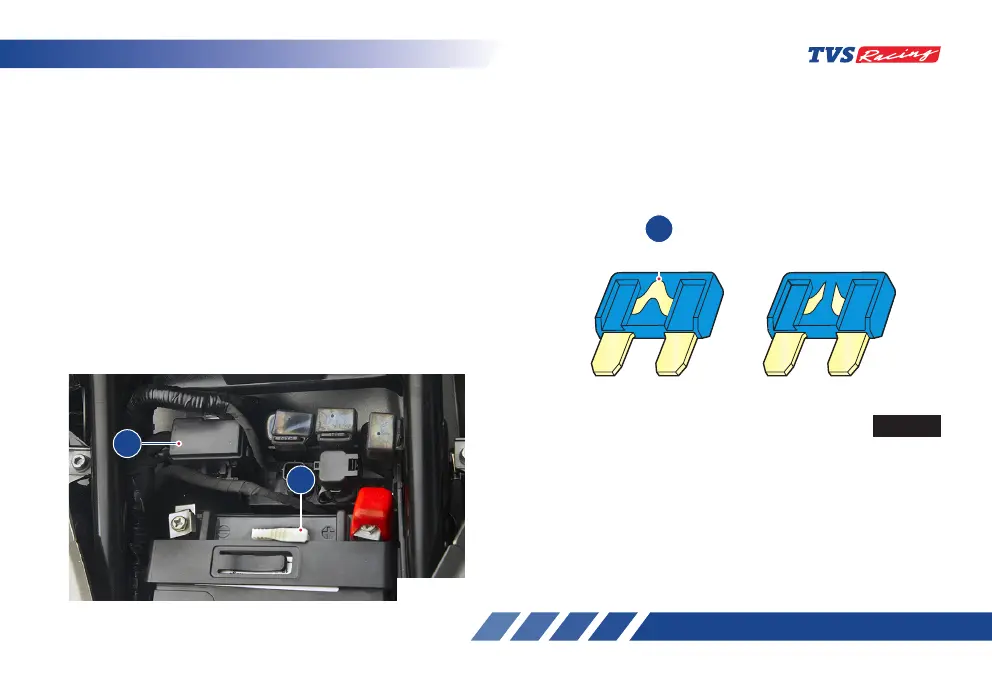

A ‘fuse puller’ (A) is placed on the battery holder can
be used to pull out the fuse from the fuse box during
replacement.
Removal and replacement
• Turn OFF the ignition.
• Press the lock and open the fuse box cover (1)
(ref. Fig. 71).
• Pull out the defective fuse and re-fix the new one
with same rating.
• Close the fuse box cover and ensure the proper
locking.
You can identify a blown fuse by the interrupted
centre link (1) (ref. Fig. 72).
GOOD FUSE BLOWN FUSE
Fuse assignments
• Each fuse inside the fuse box are assigned for
different electrical load and it is listed the table
given below. Never change the fuse rating to
protect your electrical system and to avoid severe
damages.
A
1
1
Fig. 71
Fig. 72
