Diagnostic Connector
The diagnostic connector is located below the rider
seat. Follow the procedure given below to access the
connector.
Removal
• Park the motorcycle on a flat and firm surface and
remove the pillion and rider seats as explained in
page no. 160.
• Turn OFF the ignition.

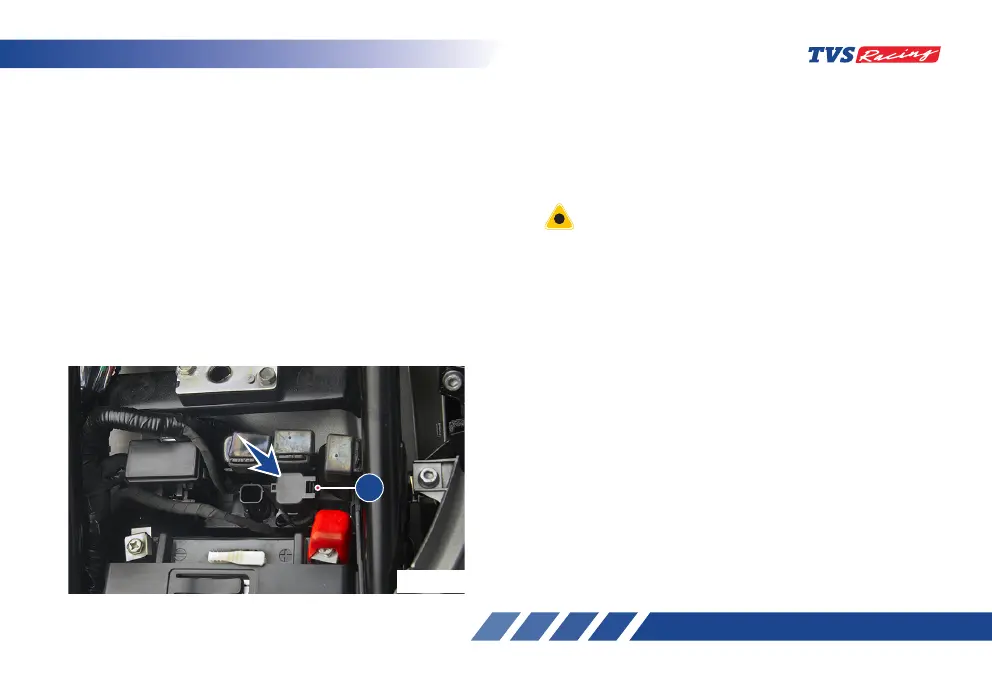

• Gently pull out connector along with its cap from
its location by releasing the lock (1) (ref. Fig. 77).
• Release the lock of the cap and take out the cap
carefully.
Re-fixing
• Re-fix the cap of the connector and ensure the
proper locking.
• Re-fix the connector to its location and lock it
properly.
Diagnostic connector to be accessed and used by the
trained personals of TVS Motor Company Authorised
Main Dealer or by the other authorised persons of TVS
Motor Company Limited during service. Do not fiddle
with system at unauthorised service location.
Ensure to re-fix the diagnostic coupler cap after the
usage to avoid damages to the electric system due to
water entry. Secure the connector in it’s location without
fail to avoid getting damaged.
1
Fig. 77
