FUSE BOX
1 357911
2 46810 12

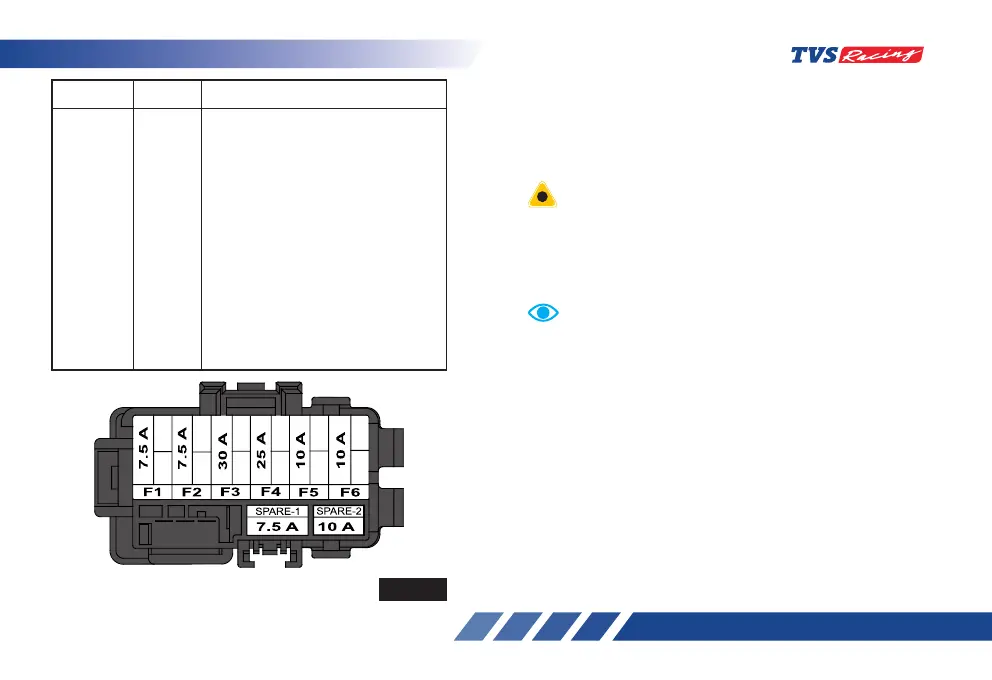

Fuse arrangement
• Fuses are arranged inside fuse box as given in the
figure (Fig. 73). Ensure to fix the right rating fuse
at right location.
Fuse Colour Electrical load
F1 - 7.5A Brown Lambda / starter relay / purge /
SAS / relay fuel pump module /
injector / relay EFI / ignition coil
F2 - 7.5A Brown Speedometer / diagnostic /
HECU / ECU / cooling fan
F3 - 30A Green Main fuse
F4 - 25A Cream HECU
F5 - 10A Red All lights / horn LH & RH
F6 - 10A
10A
Red EFI / speedometer
Red HECU
Do not use the motorcycle by shorting the wires without
a fuse. Never use a fuse with a rating other than that
specified . Failure to observe above rules may damage
the electric system or even cause fire.
A sticker with fuse colour codes and rating is pasted
inside the fuse box cover which can be referred during
fuse replacement.
Ensure to replace the ‘fuse puller’ in the same place for
future usage.
Care should be taken not to spray water on electrical
components.
Fig. 73
