146
• Release the lock nuts (4 & 5) and screw-in the
adjuster bolts (6 & 7) (ref. Fig. 65 & 66).
• Remove the chain tensioner with hugger (8) and
push the quick-release axle to the right as much
as possible (ref. Fig 66).
• Carefully pull out the quick release axle (9) from
the left side and take out the chain tensioner (10)
(ref. Fig. 66).

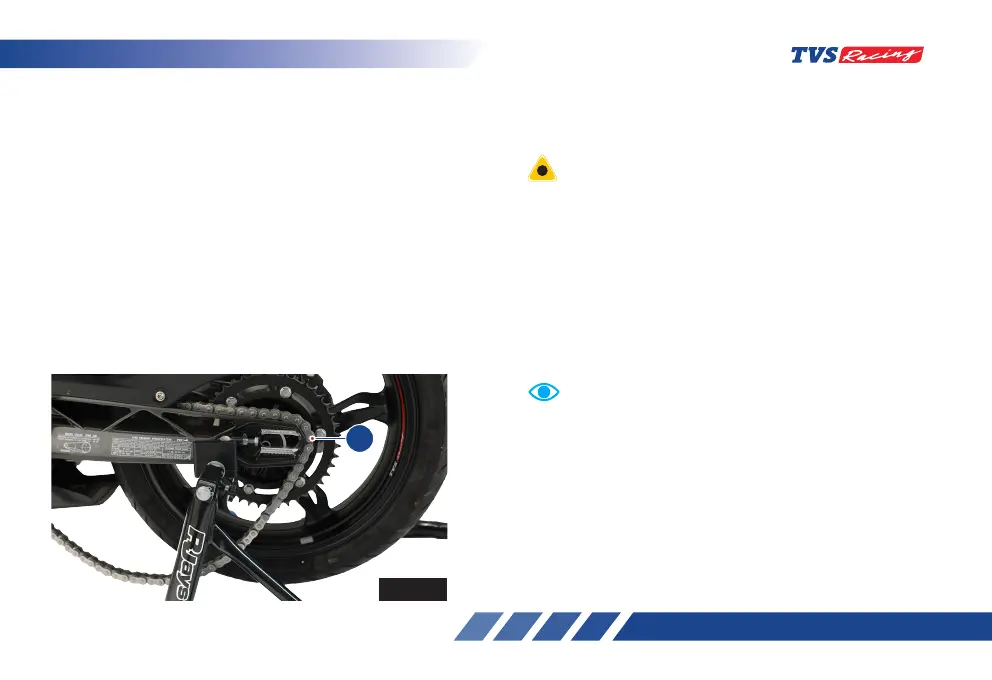

• Roll the rear wheel forward as far as possible and
disengage the chain (11) from the sprocket (ref.
Fig. 67).
• Care should be taken not to damage the wheel
speed sensor during this process.
• Carefully roll the rear wheel out from the swing
arm while pulling the brake-caliper assembly back
far enough to allow the rear wheel to come out.
Care should be taken not to damage speed sensor
during its removal and reassembly. Ensure that the
speed sensor is free from any mud / clogging with dirt.
Ensure not to damage the brake caliper during wheel
removal.
Do not actuate the brake pedal after the wheel is
removed. Unintentional press of brake pedal leads to
brake pads binding.
Sprocket assembly, spacer axle rear LH & RH are loose
fits in the wheel. Make sure that no parts are damaged
or mislaid during removal and reassembly of the wheel.
During wheel removal, take additional care to prevent
the wheel rims from scratches.
11
Fig. 67
