FUSE REPLACEMENT
Non-working of electrical systems may be due to
safety fuse failure. Short circuit or overload in the
electrical system are the main causes for fuse
failure. Follow the procedure given below for
inspecting and replacing the fuse.
1. Open the cover frame R as explained earlier
(refer page no. 23).

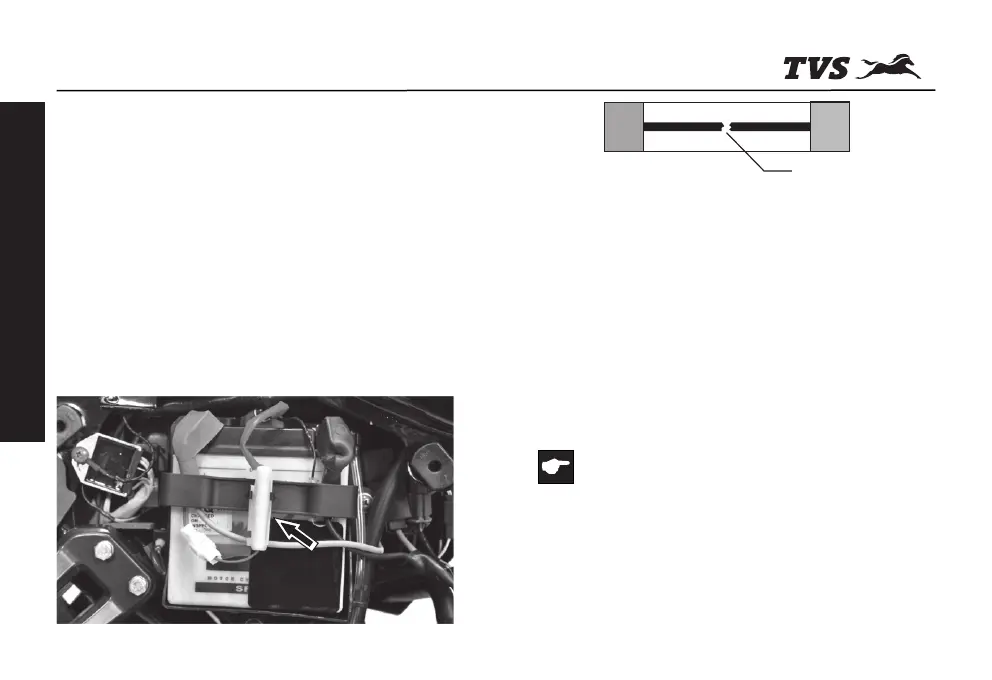

2. The fuse case fitted on the battery band
contains a 10 A fuse.
3. Pull out the fuse case from battery band.
4. Open the fuse case and slide out blown fuse.
5. Replace the fuse with a new (extra fuse is
provided inside the fuse case itself).
6. Close the fuse case and re-fix it into the battery
band.
7. Turn ‘ON’ the ignition lock and check for proper
functioning of electrical systems. Incase the
fuse fails again, consult the nearest TVS Motor
Company Authorised Distributor / Dealer or
Authorised Service Centers.
MAINTENANCE
MAINTENANCE
-36-
Caution
Do not use vehicle by shorting the wires without a
fuse. This may result in overheating of electrical /
wiring and may result in fire.
Do not use fuse of higher amperage than specified
for the safety of electrical system.
Failed fuse
