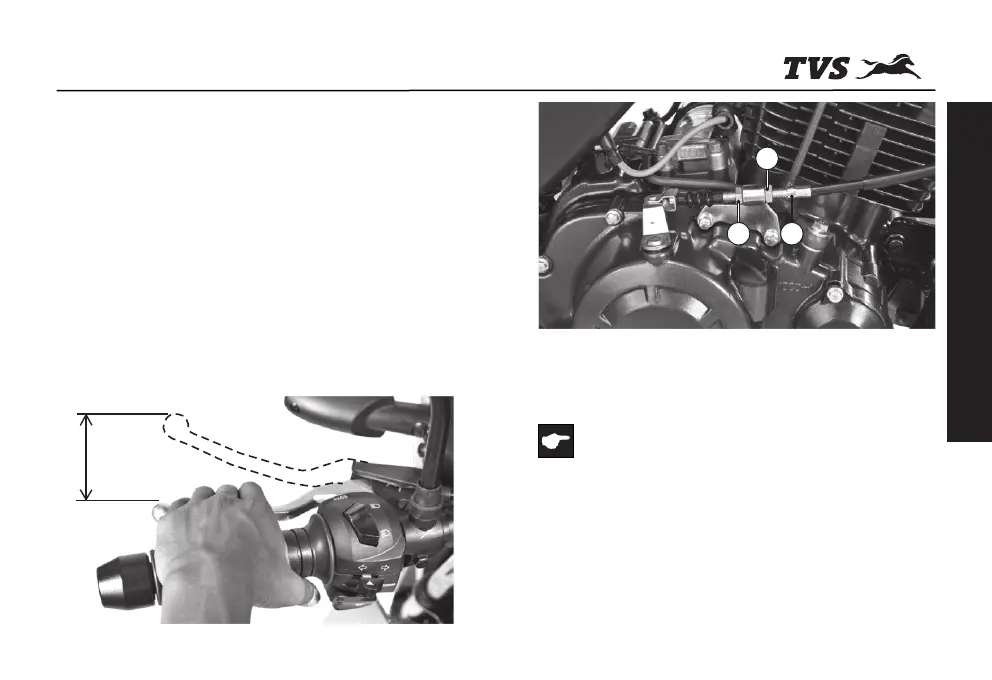

The free play of the clutch lever should be
5 ~ 15 mm as measured at the clutch lever end
before the clutch begins to disengage.
Adjust the clutch lever free play periodically by
means of clutch cable adjuster at arm clutch
release if the free play is not within the specified
limit.
1. Ensure that the engine is cold.
2. Loosen the lock nut (2) while holding the clutch
cable adjuster (3). Adjust the clutch cable
adjusting nut (1) ‘in’ or ‘out’ to give sufficient
play in the clutch lever.
3. After adjusting the play, hold the adjuster nut in
the same position, tighten the lock nut.
MAINTENANCE
-39-
MAINTENANCE
Caution
Too much or too less clutch lever free play will
damage the clutch plates, thereby affecting the
performance of the vehicle.
Clutch lever free play should be adjusted only
when the engine is cold.
1
32
