F R O N T W H E E L R E M O V A L A N D
REASSEMBLY

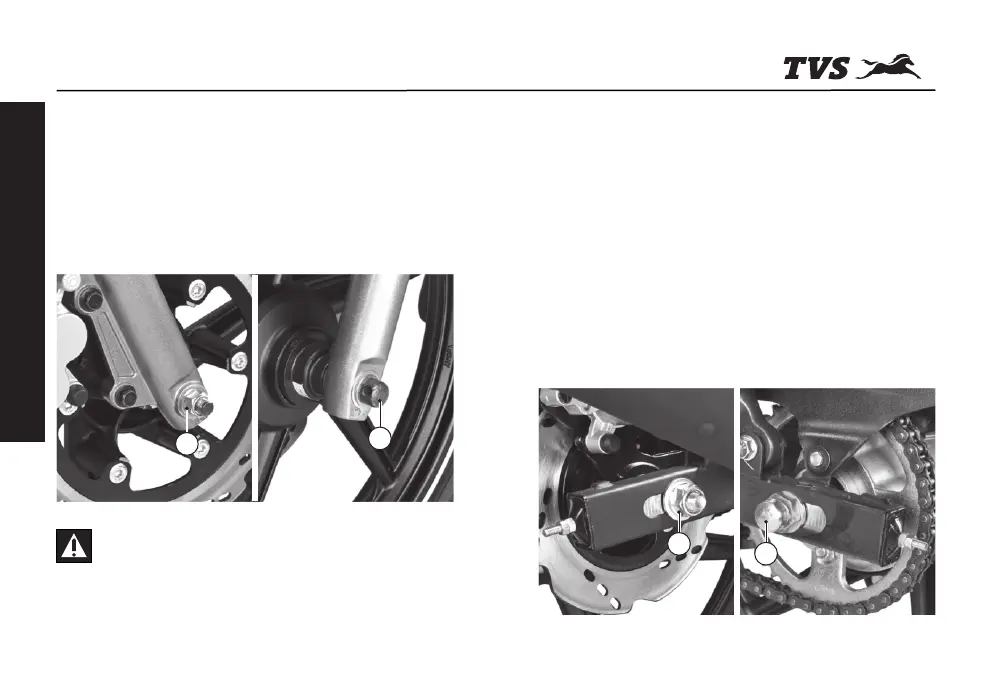

1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer and
remove a spacer from the right side of the
wheel.
MAINTENANCE
MAINTENANCE
-46-
3. Place a support below the frame to prevent
vehicle from falling and lift the vehicle up.
4. Carefully dislocate the disc from the caliper
assembly. Dislocate the hub drive from the
wheel and slide the wheel out.
5. Reverse the procedure for reassembling.
Ensure proper seating of hub drive in the wheel
assembly and front fork during reassembly.
R E A R W H E E L R E M O V A L A N D
REASSEMBLY
1. Remove the axle nut (1) and along with the
washer.
Warning
Ensure proper seating of disc in the caliper assembly
while reassembling.
