Rear brake

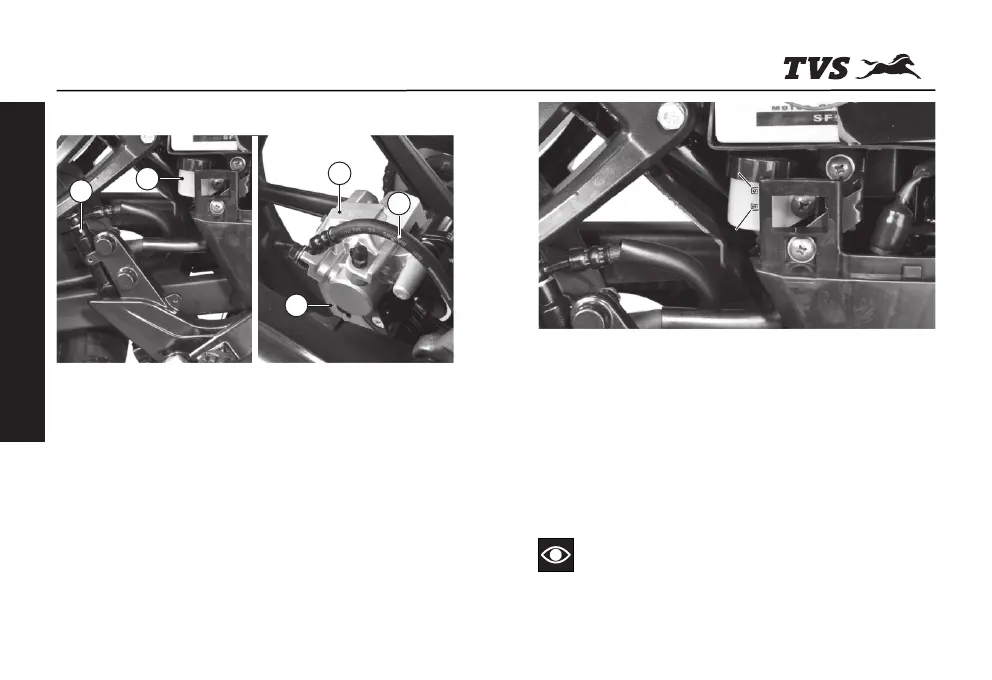

You can observe a master cylinder (1) mounted on
the right side pillion foot rest, a reservoir (2) below
the cover frame R, a caliper assembly (3) fitted on
the rear wheel axle, a disc (4) to the rear wheel and
a high pressure hose (5) connecting the master
cylinder and the caliper assembly.
1. Remove the cover frame R (refer page no. 23
for removal procedure).
2. Check the brake fluid level in the reservoir. It
should be between maximum and minimum
level.
MAINTENANCE
MAINTENANCE
-42-
3. If the brake fluid level is below minimum or
while applying brake if you feel the brake is
more spongy or ineffective due to air entry,
contact TVS Motor Company Authorised
Distributor / Dealer or Authorised Service
Centers for topping-up the brake fluid, air
bleeding and other brake related inspections.
Maximum
Minimum
Note
Check the brake fluid level only when the master
cylinder is parallel to the ground.
1
2
4
3
5
