F4000 LCD Operator's Manual Document No: LT0117
Operating Instructions - Point Functions
Page 8-6 19 April 2002 Issue 2.38
8.1.5 OPERATING SEQUENCE - POINT SEARCHES
The point search functions allow an operator to query AARs, ADRs and MPRs for points
meeting specified status criteria, e.g. in dirty alert. (Note that the AAR must support the
search functions. If the AAR does not support these functions, the search will complete with
no points found. MPRs support all of the search functions. The FIP itself processes
searches on behalf of ADRs and ARRs).

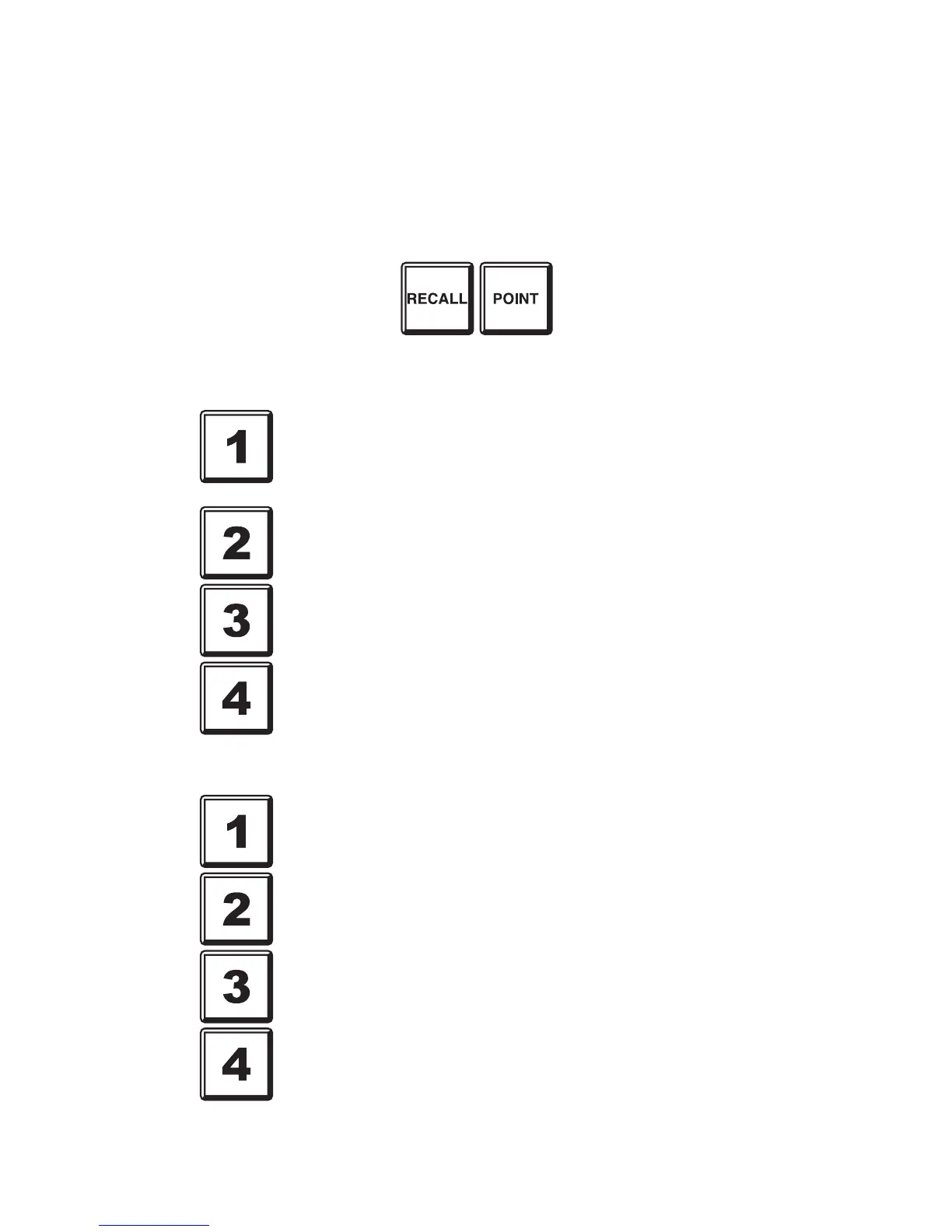

To start a search from the base, or any information display, press:
Then select the option required. Valid options are:
Menu 1:
Status - specific point status and analogue value recalls
(Refer 8.1.2, 8.1.3 and 8.1.4).
Alarms - search for any points in alarm.
Pre-Alarms - search for any points in pre-alarm.
More - accesses Menu 2.
Menu 2:
Faults - searches for any points in fault.
DirtyAlrt - searches for any detectors in dirty alert.
Off Normal - searches for any points with off-normal status.
More - accesses Menu 3.
