MAINTENANCE
J10O531A
①

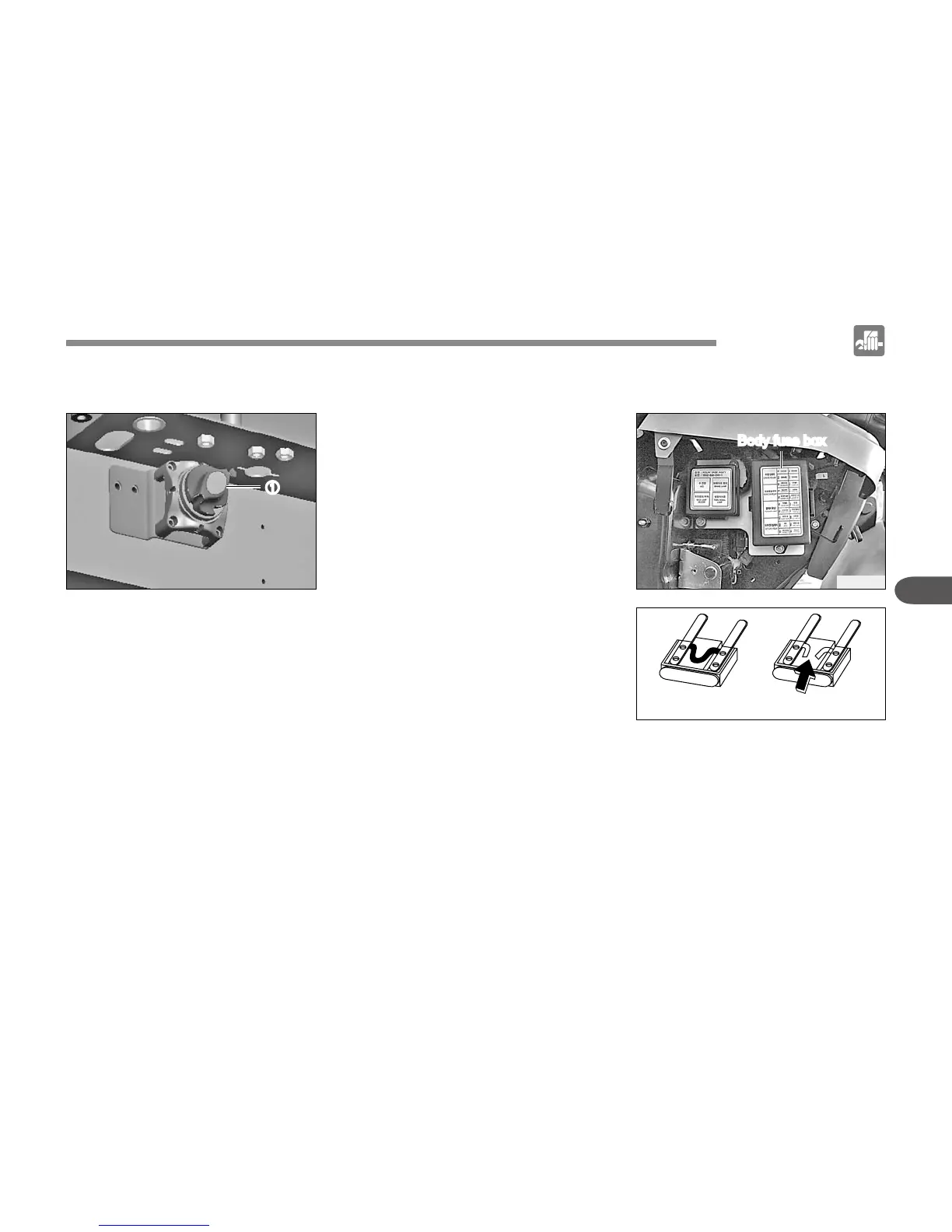

Normal Open circuit
Body fuse box
J10O523A
993F029A
DISCONNECTING BATTERY
The function of the battery discon-
nect switch is to disconnect the pow-
er supply to the electrical system by
interrupting the connection to the
battery. This has benefits for tractor
safety and operation, in particular:
(1) Protects the electrical system
against short circuit;
(2) Reduces battery self-discharge
when the tractor is left idling for
prolonged periods;
(3) Allows maintenance and repairs
to be carried out in conditions of
safety.
►
Turn the knob to “OFF” to discon
-
nect the battery and back to “ON” to
resume normal operation. The bat-
tery disconnect knob (1) is locat-
ed on the bracket to the right of the
battery. The battery disconnect knob
may be removed for safety purpos-
es in the manner described below.
< Removal of the knob >
(1) Turn the knob to the “off” po-
sition; the knob cannot be re-
moved in this position.
(2) Press the knob in and continue
to turn it counter-clockwise as far
as it will go.
(3) Remove the knob.
< Retting the knob >
(1) Ret the knob.
(2) Press and turn the knob clock-
wise, positioning it at 45°.
CHECKING AND REPLACING FUSE
(1) Body fuse box
Fuses are installed in this tractor
to prevent any possible accident in
case of wiring circuit malfunction.
If the electric system is malfunc-
tioning during driving, check for any
blown fuse.
►
