DESCRIPTION OF OPERATION SYSTEM
J10O332A
< Operation of interior controls >

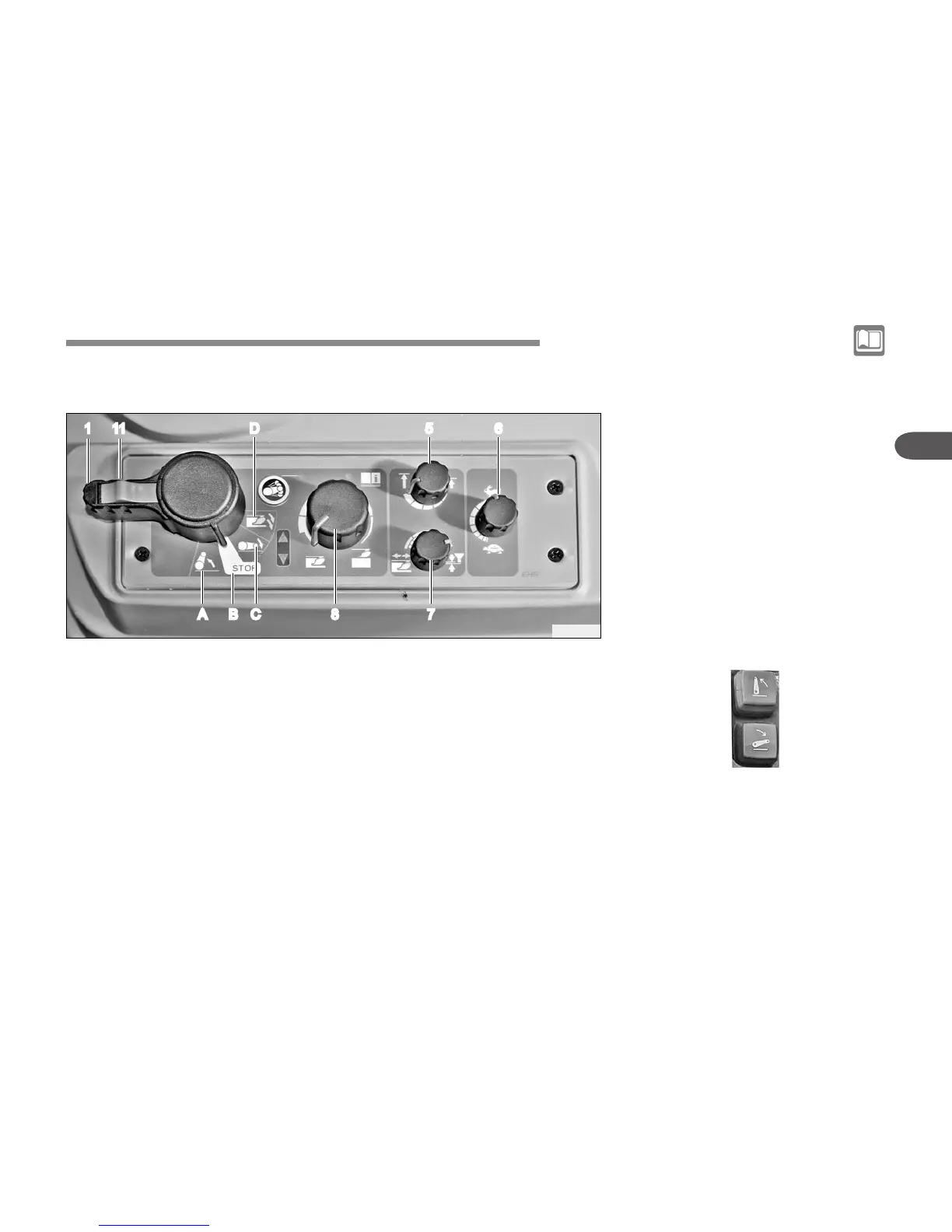

1. Control lever
A. Lift lift arm
B. Stop
C. Lower lift arm
D. Lower to ground rapidly
When releasing the knob in this po-
sition, the knob is automatically re-
turned to the position B.
2. Lift arm upper position limit control
knob
- Turning it clockwise decreases the
upper position limit of the lift arm.
- Turning it counterclockwise in-
creases the upper position limit of
the lift arm.
3. Lift arm lowering speed control knob
- Turning the knob toward the rabbit
symbol increases the lift arm lower-
ing speed.
- Turning the knob toward the tor-
toise symbol decreases the lift arm
lowering speed.
4. Position/Draft control knob
- Turning it counterclockwise sets
the draft control with higher priority.
- Turning it clockwise sets the posi-
tion control with higher priority.
5. Working depth control knob
- Turning it clockwise increases the
height of the lift arm.
- Turning it counterclockwise de-
creases the height of the lift arm.
External lifting/lowering switch opera-
tion
These switches are installed to
the left and right mudguards on
the back of the vehicle and can
be used to lift and lower an imple-
ment.
1 D
C 8 7
11 5 6
BA
