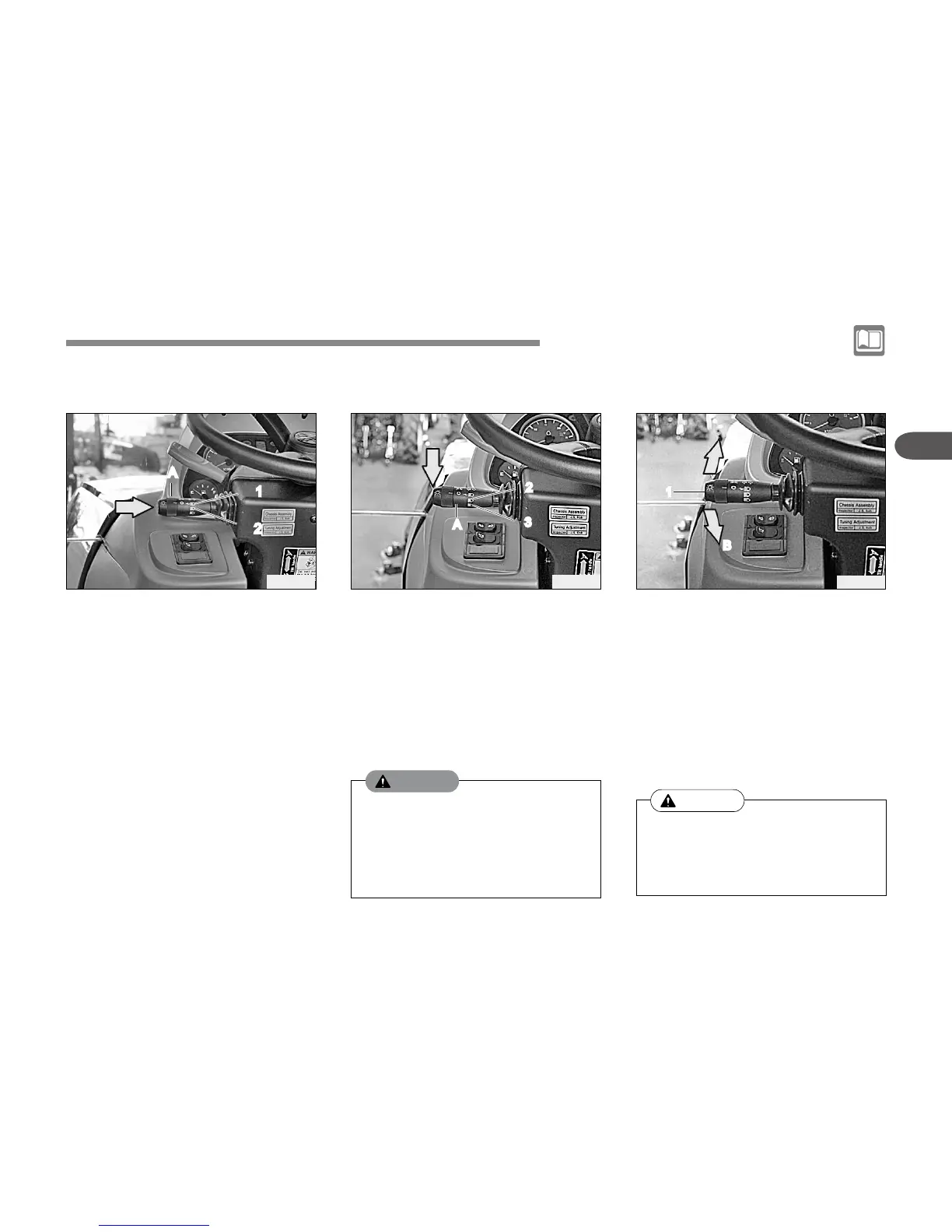

DESCRIPTION OF OPERATION SYSTEM
COLUMN SWITCH LEVER
(1) Lamp selection lever
This lever is to operate the head-
la mps, horn an d turn signa l
lamps.
Position lamp
Turn the lever (A) from the posi-
tion (1) to (2).
Horn
Press the tip of the lever in the
arrow direction.
J10O305A
A
1
2
J10O306A
<Headlamp>
Low beam
Turn the lever (A) from the position
(2) to (3).
High beam
Push the lever down with the
High beam activated.
A
2
3
The high beam can obstruct the
view of other drivers coming in
the opposite direction on a road,
leading to an unexpected acci-
dent.
WARNING
J10O308A
A
B
1
This lever is not automatically re-
turned to the neutral position.
Therefore, set it back to the neu-
tral position after turn.
CAUTION
(2) Turn signal lamp operation
The turn signal lamps can be op-
erated with the main switch in
the "ON" position regardless of
the position of the column lever.
Left turn - Pull the lever 1 in the
direction "B"
Right turn - Pull the lever 1 in the
direction "A"
