TYM T1054 - Checking and Adjusting A;C Compressor Belt; Checking and Adjusting Fan Belt; Checking and Adjusting Wate Pump Belt

5 - 
5
MAINTENANCE

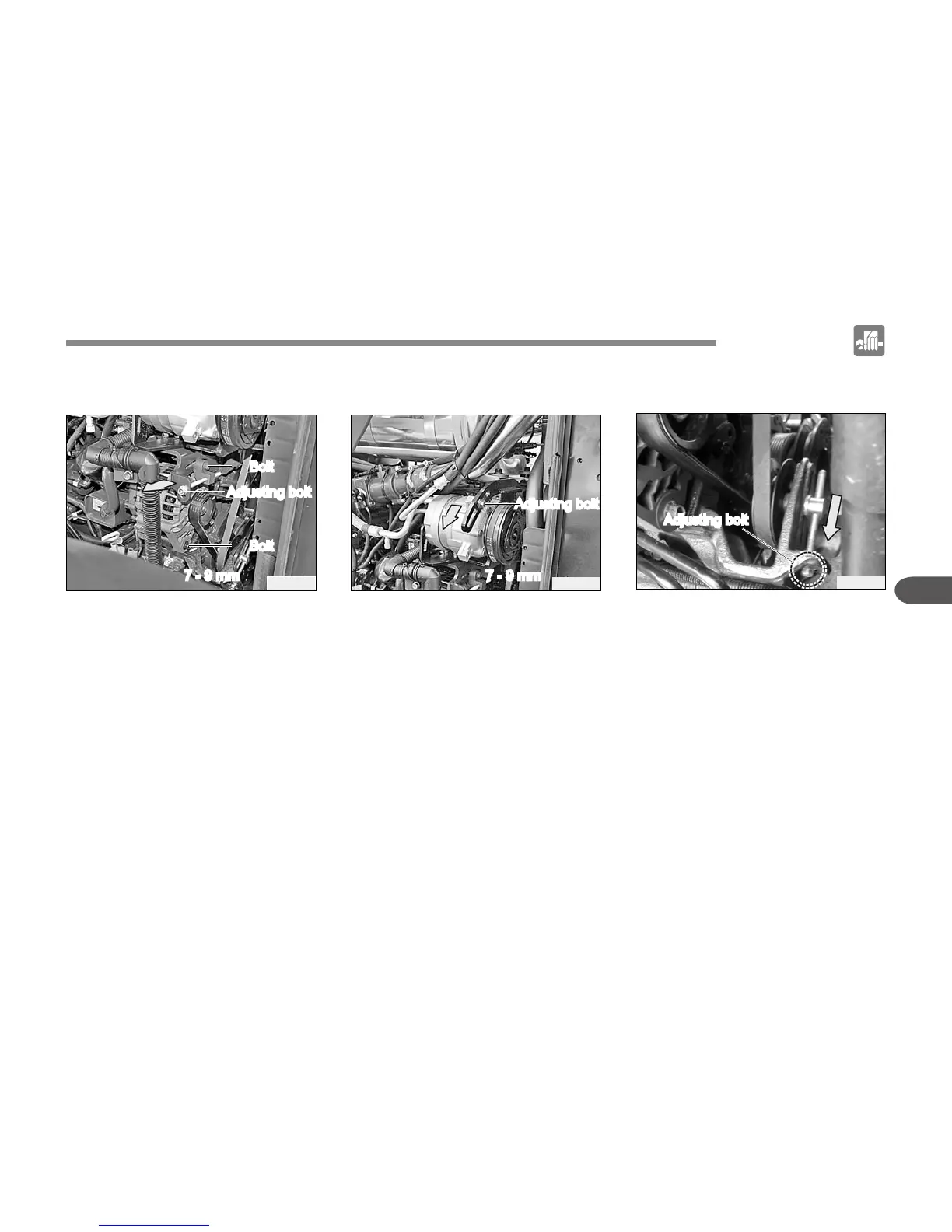

CHECKING AND ADJUSTING
WATER PUMP BELT
①
Unscrew the Water pump mount-
ing bolts slightly and move the
Water pump to adjust the tension
of the belt.
②
Check the belt tension.
Press the center of the belt.
If it is deected for 7 - 9 mm, it is
normal.
►
J10O525A
Adjusting bolt
Bolt
Bolt
7 - 9 mm
CHECKING AND ADJUSTING
A/C COMPRESSOR BELT
Check and adjust the tension of the
A/C compressor belt regularly.
①
Unscrew the tension adjusting
bolt of the compressor belt.
②
Pull the bolt to adjust the ten
-
sion. Then, tighten the bolt.
③
Press the center of the belt with
a lter. If it is deected for 7 - 9
mm, the tension is proper.
►
J10O526A
Adjusting bolt
7 - 9 mm
CHECKING AND ADJUSTING
FAN BELT
①
Unscrew the alternator mounting
bolts slightly and move the alter
-
nator to adjust the tension of the
belt.
②
Check the belt tension.
Press the center of the belt.
If it is deected for 7 - 9 mm, it is
normal.
►
J10O377A
Adjusting bolt
