5 - 
MAINTENANCE
J10O527A
CALIBRATION FOR REPLACE-
MENT OF POSITION SENSOR/
EHR-B (BOSCH ECU)
Step 1: Start the engine.
Step 2: Set the dial to the control
mode on the Bosch control
panel as shown in the fig-
ure.
Step 3: Set the dial to the set point 1
as shown in the gure.
Step 4: Press the external hitch lift-
ing button to lift the 3-point
hitch.
â–º Step 5: Press and hold the external
hitch lifting button even after
the 3-point hitch is fully lift-
ed.
Step 6: Hold the external hitch lifting
button until the status LED
on the Bosch control panel
blinks and then stops.
Step 7: When the LED on the Bosch
control panel stops blinking,
release the external hitch
lifting button.
Step 8: Set the dial to the set point 2.
Step 9: Press the external hitch low
-
ering button to lower the
3-point hitch.
Step 10: Press and hold the exter-
nal hitch lowering button
even after the 3-point hitch
is fully lowered.
Step 11: Hold the external hitch low-
ering button until the sta-
tus LED on the Bosch con-
trol panel blinks and then
stops.
Step 12: W h e n t h e L E D o n t h e
Bosch control panel stops
blinking, release the exter-
nal hitch lowering button.
Step 13: Stop the engine, wait for 5
seconds and turn the igni-
tion switch to the "ON" po-
sition for 5 seconds.

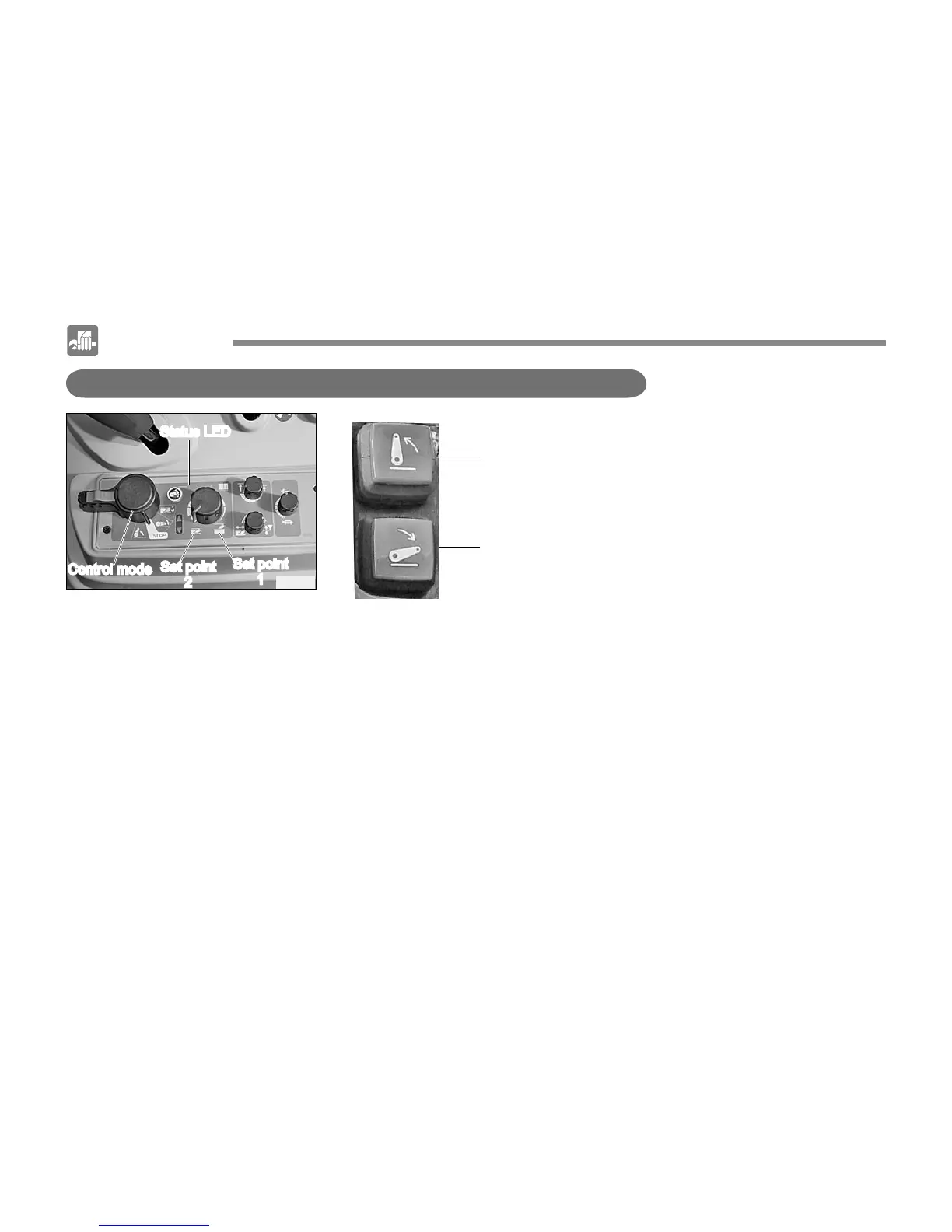

External hitch
lifting button
External hitch
lowering button
Control mode
Set point
2
Status LED
Set point
1
15. INSPECTING ELECTROHYDRAULIC SYSTEM (SP MODEL)
