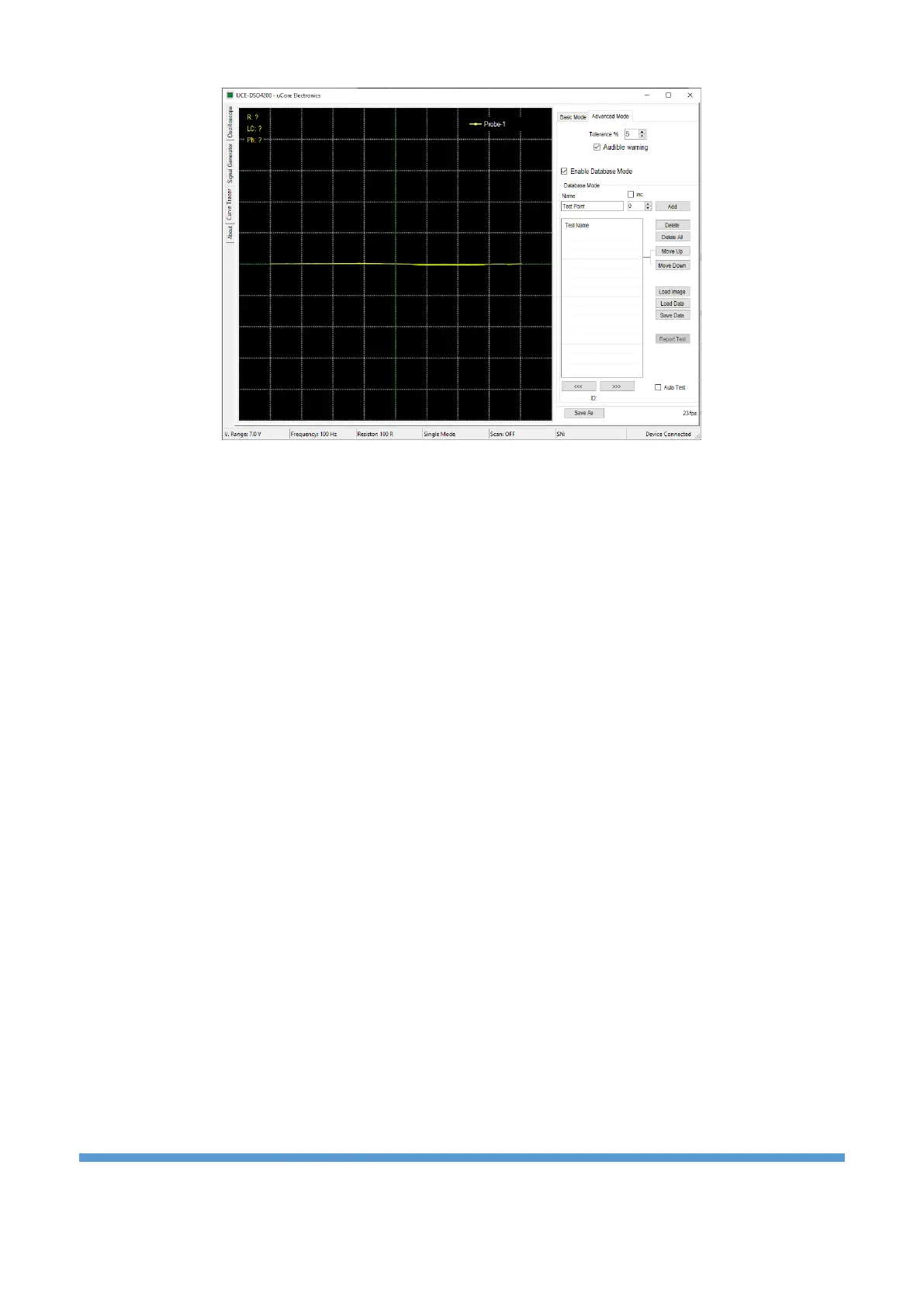

Figure 18. Advanced mode
There are many buttons in this section. These buttons;
Add: Adds a new test point to the database list.
Delete: Deletes the test point selected in the list.
Delete All: Deletes the entire list.
Move Up: Moves the selected test point up one position.
Move Down: Moves the selected test point down one position.
Load Image: Opens a new window to load the visual of the electronic board to be tested.
Load Data: Loads a database saved on disk to the list.
Save Data: Saves the created database on disk.
>>>: Selects the next test point.
<<<: Selects the previous test point.
There are also two checkboxes in this section.
Inc.: This check box adds an incremental number to the end of the test name. Thus, a different test name is
created each time when the Add button is clicked.
Auto Test: This check box is selected to start the comparison test from the database.
