UT25CL User Manual
30

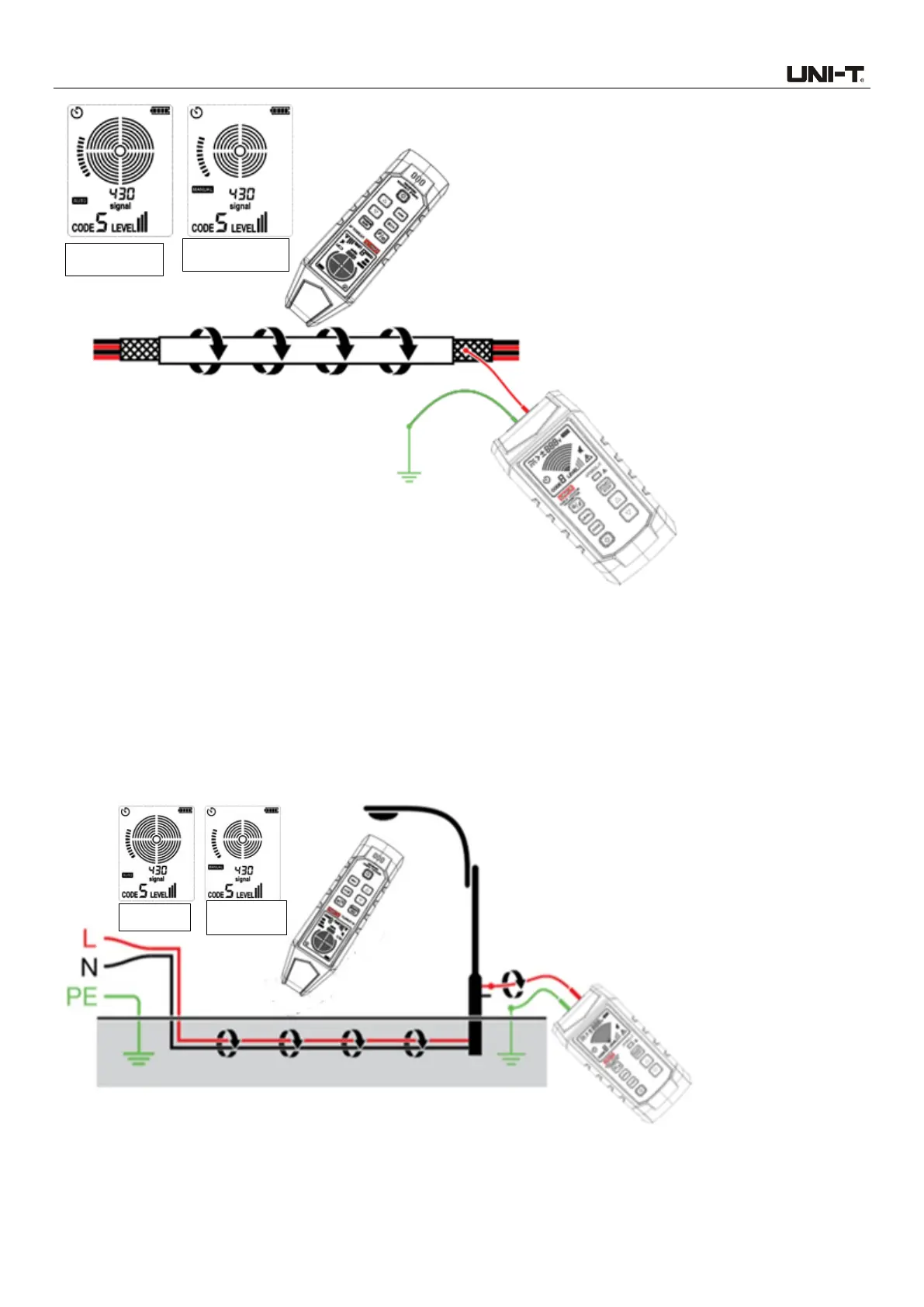

Figure 8.5.2a Track shielded cable (with its far end disconnected from grounding)
8.6 Track Underground Wire
UT25CL can track energized or deenergized cables buried in ground, the tracking method is same
as that of locating the cable on wall or ground. Please perform tracking by using independent
grounding. The default LEVEL is III after the transmitter is powered on. As shown in Figure 8.6.1a.
Figure 8.6.1a Track the cable buried in ground
