UT25CL User Manual
5
1. Overview
UT25CL Handheld Cable Locator can be used to detect the path of low-voltage cables buried in
ground (such as cabling inside wall); test and diagnose opens, shorts and other problems occurring
at cabling; and detect if the tested cable is energized. The transmitter can display corresponding
voltages (voltage of energized cable: ≥8V), and the receiver can simultaneously display the signal
strength, transmitter code, transmitter power level, low battery, etc. UT25CL has multiple
advantages including accurate measurement, easy operation, visualized display, and more, making
it an ideal tool for low-voltage cabling engineering, engineering and maintenance of metal
conductors, etc.
2. Accessories
Open the package and take out the Meter to check if any accessory is missing or damaged.
UT25CL-T transmitter------------------------------------------------1 pc
UT25CL-R receiver----------------------------------------------------1 pc
Dual in-line test leads (red + black)------------------------------1 pair
Alligator clips (red + black)-----------------------------------------1 set
Lantern-tip test probe (red + black)-----------------------------1 pair
AC polarized plug wire----------------------------------------------1 pc
Quick guide start-----------------------------------------------------1 pc
1.5V AA alkaline battery------------------------------------------6 pcs
1.5V AAA alkaline battery----------------------------------------6 pcs
If any accessory is missing or damaged, please contact your supplier immediately.
3. Safety Information

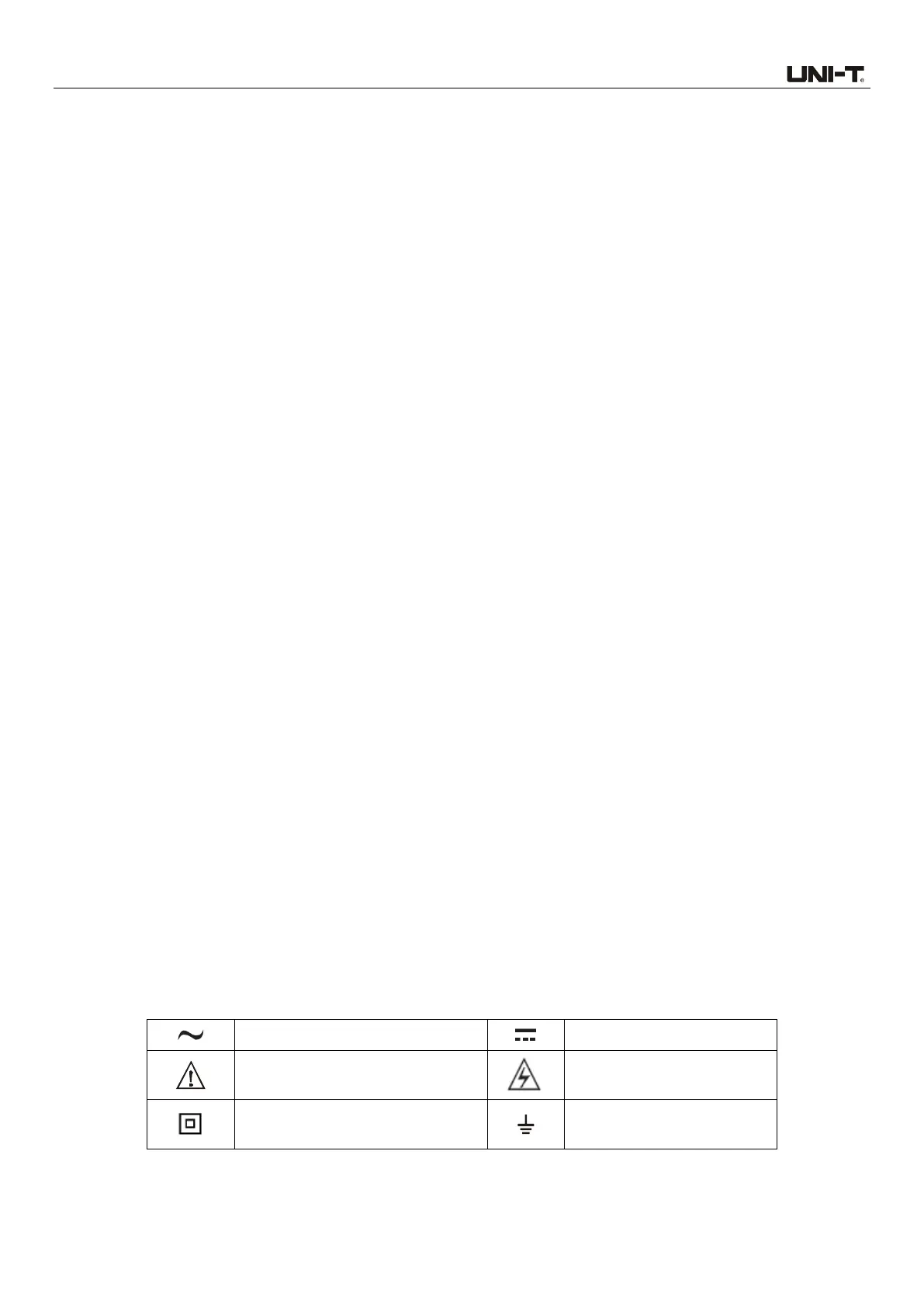

3.1 Electrical Symbols
AC (Alternating Current)
DC (Direct Current)
Warning
High voltage
Double insulated
Grounding
