59

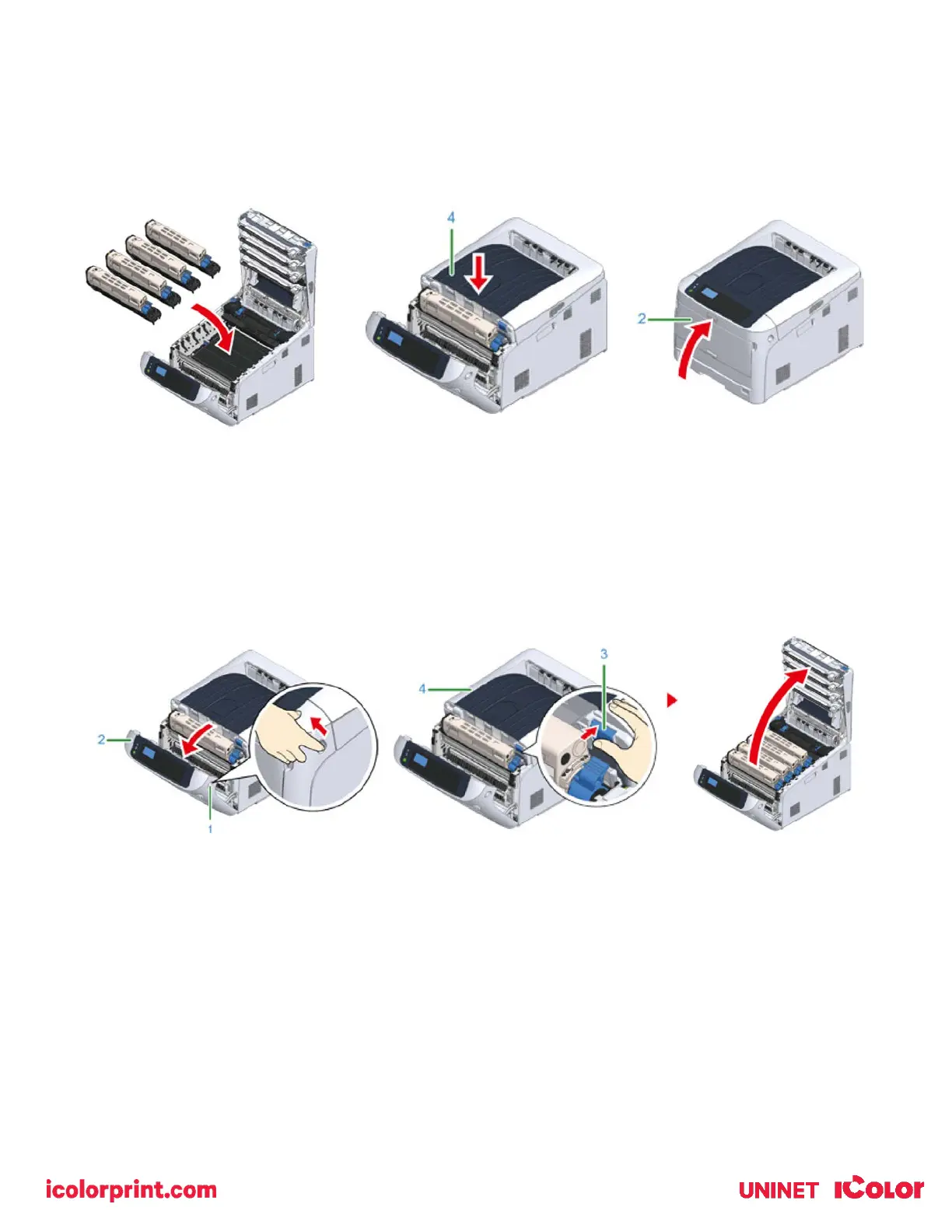

6) Return all four image drums into the printer carefully.
7) Close the output tray (4) by pushing the center of the cover firmly.
8) Close the front cover (2).
• The front cover cannot be closed if the output tray is not closed securely.
Error Code ‘382’, ‘383’, ‘385’, 639, ‘640’
• A paper jam has occurred near the fuser unit.
1) Insert your finger into the recess on the right side of the printer and pull the front cover open lever (1) to open the
front cover (2) forward.
2) Press the open button (3) and open the output tray (4).
3) Remove all four image drums and place them on a flat surface.
• Use extra care when handling the image drum (the green cylinder) because it is fragile.
4) Cover the removed image drums with paper so that the image drums are not exposed to light.
5) Remove any jammed paper remaining inside of the unit.
To Next Page
