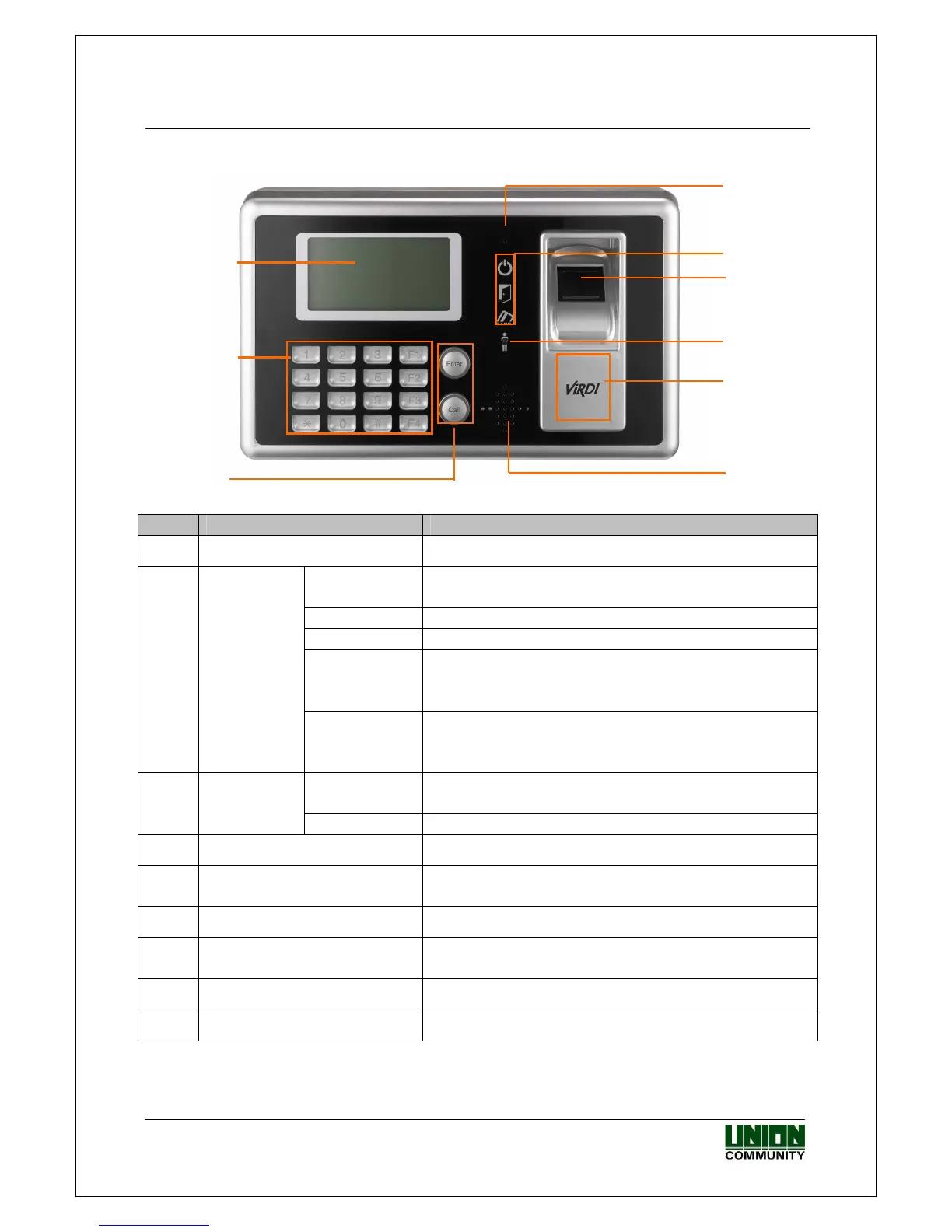

1.2. Terminal Description
①
①①
①
LCD Display messages for all the operations.
②
②②
②
Key Pad
[F1], [F2],
[F3], [F4]
[F1] : Start, [F2] : Leave,
[F3] : Outside Work, [F4] : Return
[1] ~ [9] Input digits (1~9).
[0] Enter ‘0’ or LCD menu scroll.
[*]
Terminal menu setting
(Enter into menu mode for terminal menu setting
when pressed and held for over 2 seconds).
[#]
- Clear typo when entering settings.
- Move up to higher menu.
- Use when escaping from menu setting.
③
③③
③
Enter, Call
[ENTER]
Use after entering the settings when configuring
the terminal environment.
[CALL] Visitors use this to ring the interphone bell.
④
④④
④
Microphone Convey visitor's voice to door phone.
⑤
⑤⑤
⑤
LED Lamp
Show operation status like Power Supply, Lock
Status and Card Contact.
⑥
⑥⑥
⑥
Fingerprint Input Window Fingerprint input.
⑦
⑦⑦
⑦
IRED Sensor
Person's approach automatically turns on button
LED and LCD window with ID input screen.
⑧
⑧⑧
⑧
Card Input Area Card input.
⑨
⑨⑨
⑨
Speaker Voice output.
①
①①
①
To Next Page
