UNIPOWER
UP-2210R/P Hardware installation and configuration manual

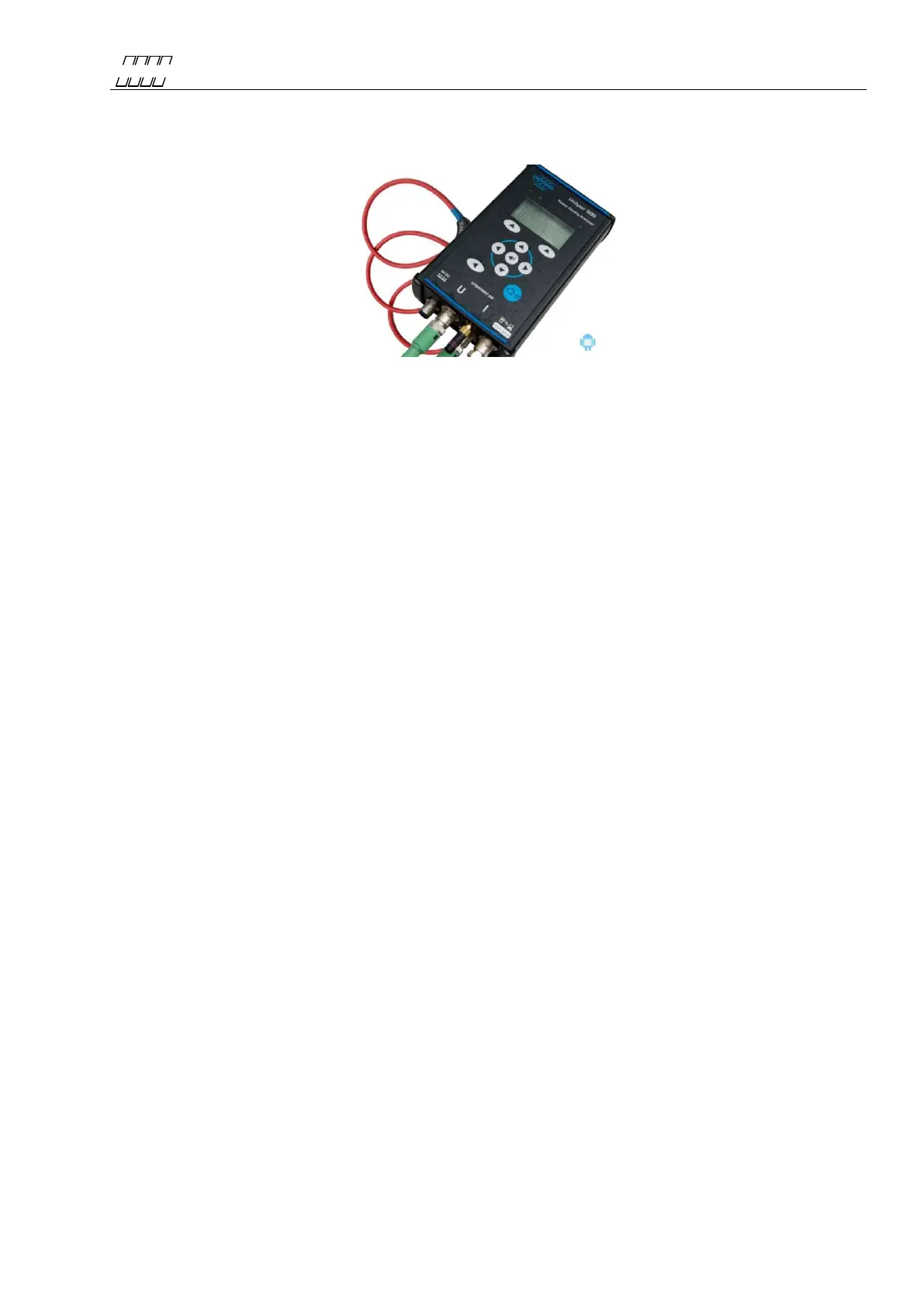

3.3 Portable meter Unilyzer 900 / Unilyzer 900c
The meters Unilyzer 9900/900c are portable power quality and disturbance analysers. They can also
be integrated in a PQ Secure system together with permanently installed meters.
Figure 3
3.4 Software
The PQ Secure system consists mainly of four programs performing different functions. The system
is built around a Microsoft SQL server, which stores all information about the system as well as the
measure data. The client computers and communication computers later use this information when
they contact the measuring devices and when they perform analyses.
PQ Secure Main program of the system. Used to present measure data from the
SQL database, and to configure the system.
PQ Online Used to present real-time values from the meters, and to configure the
meters.
PQ Schedule Manages communication with the meters and transfers their measure
data to the SQL database.
PQSM PQ Secure System Manager. Server software, which handles periodic
reports, limit calculations, alarms, PQ Ports etc.
PQ Secure DB Wizard Only used when the PQ Secure database is being installed and updated.
UniLauncher Software/service used to automatically connect to meters.
Microsoft SQL Server is also needed for the operation of the system, this software is purchased
separately.
