UNIPOWER
UP-2210R/P Hardware installation and configuration manual
24
4.4.7 1-phase measurement with direct voltage and one CT (Line-to-neutral voltage)
Figure 16

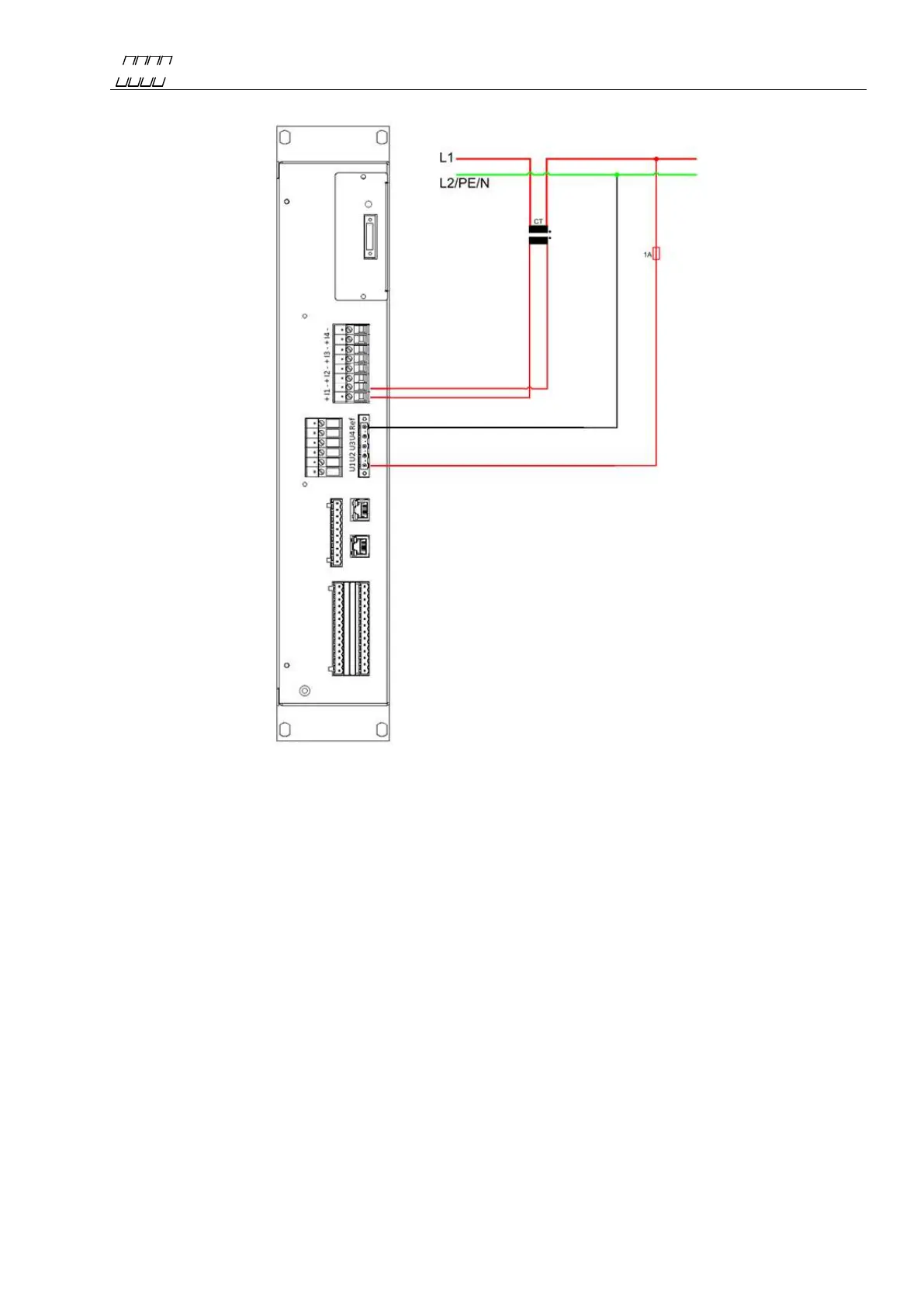

The above wiring diagram is used for single-phase measurement in low voltage networks. The
voltage channel of the unit is connected directly to the public distribution networks for measuring
line-to-neutral voltage (230 V) and therefore do not require an instrument transformer (PT).
However, the current channel is connected to existing instrument transformer, allowing the
measurement of high currents, e.g. directly from the secondary side of a power transformer. Always
protect the voltage inputs with a suitable fuse in each conductor (red conductor). The connection for
this type of measurement is as follows:
Channel: Measured object: Channel: Measured object:
U1 = L1 I1+ = L1 CT+
Ref = (Neutral) I1- = L1 CT-
