UNIPOWER
UP-2210R/P Hardware installation and configuration manual
5 Substation display
There is an optional substation display unit that can be installed in a panel and serve a number of (up
to 20) meters.

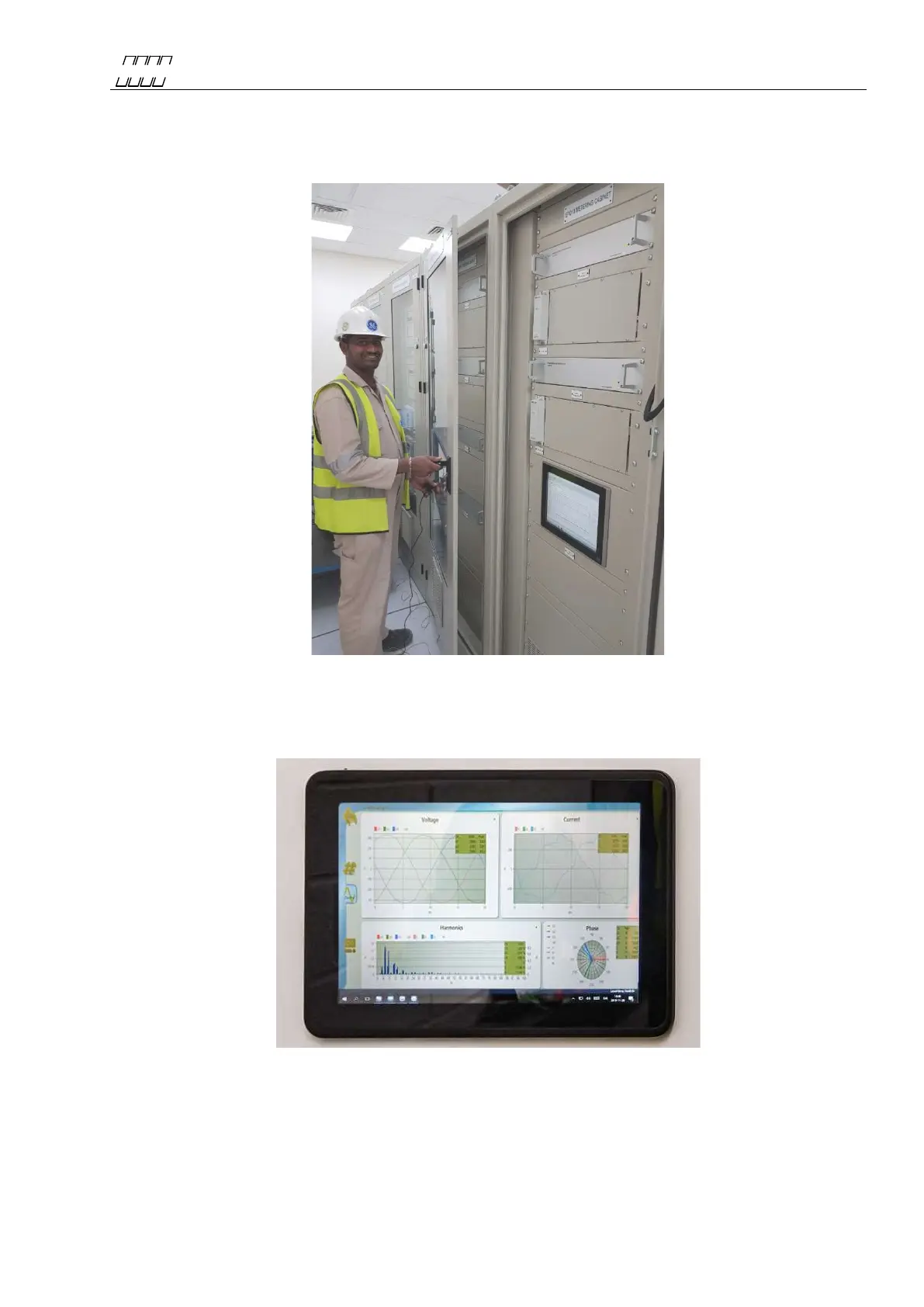

Figure 31
From the substation display realtime values can be viewed and meter configuraton can be done.
For physical installation measures please see separate document.
Figure 32
In the substation display PQ Online 3 is installed (see section 9.3) and configured for autostart
operation.
