UP-2210R/P Hardware installation and configuration manual
4.2 Installation diagram

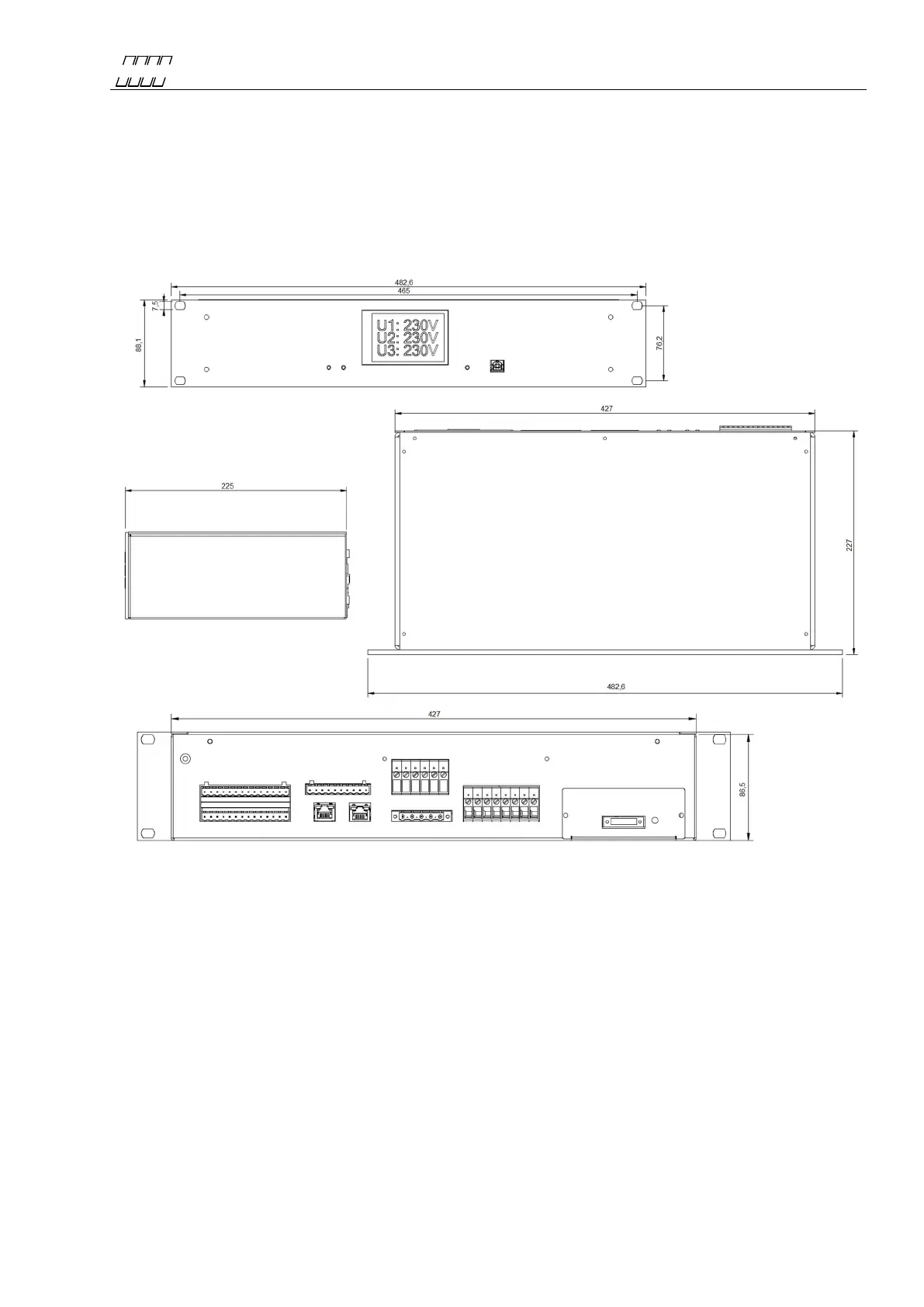

The UP-2210R meter can be mounted on a rack/panel. For mounting dimensions, refer to the
drawing below.
It is important to install the meter as close as possible to the measured object. When installing the
unit, also bear in mind the type of communication facility you will be using, for example close to the
window for a GSM modem, near a telephone outlet for an external modem, etc.
Figure 7
4.3 Connection points
There are several connection points on the UP-2210R/P for connecting to the measured object and
for communication links. The connections are described below:
