UNIPOWER
UP-2210R/P Hardware installation and configuration manual

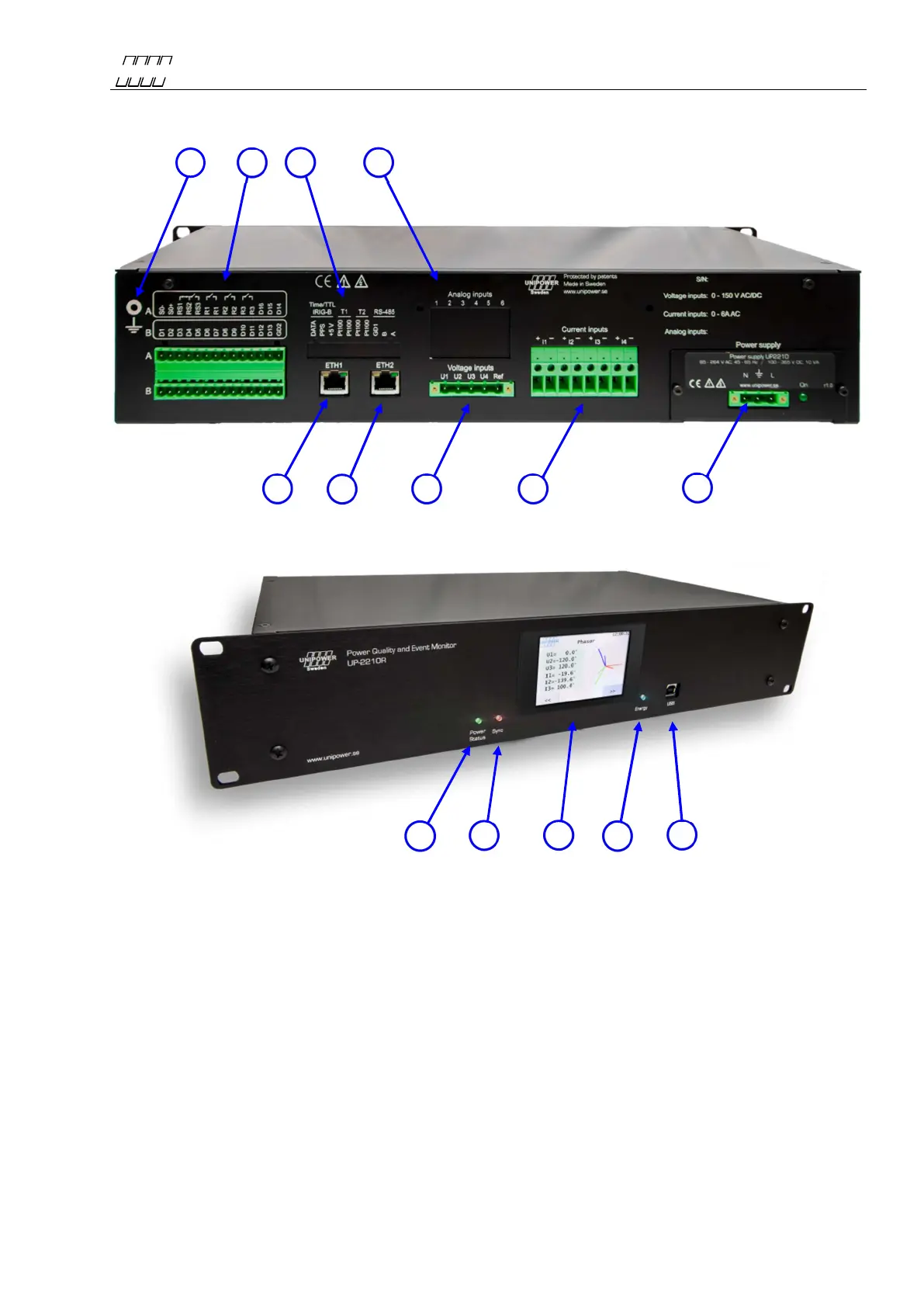

Figure 8
A. Digital outputs. Optional. The digital outputs are relays, which can be used for alarms and
for controlling other equipment. The meter can also be programmed to activate the digital
outputs under certain conditions, for example when a transient of a certain level is recorded.
The digital outputs are configured using the PQ Online program.
Digital inputs. Optional. The digital inputs are galvanically isolated with a common for each
group of 16 inputs. The digital inputs are used for a range of applications, providing
completely new monitoring opportunities. The UP-2210 can for example be used as a fault
meter. You have the option of capturing various types of power quality events, for example
switch connections, relay status, etc. The digital inputs can also be used for monitoring other
A
C
B
D
E
F G
H
I
J
K
L
M
N
