Unipower UP-2210R - Split Phase 2 CT 2 PT

UNIPOWER
UP-2210R/P Hardware installation and configuration manual
32
4.4.15 Split Phase 2CT 2PT

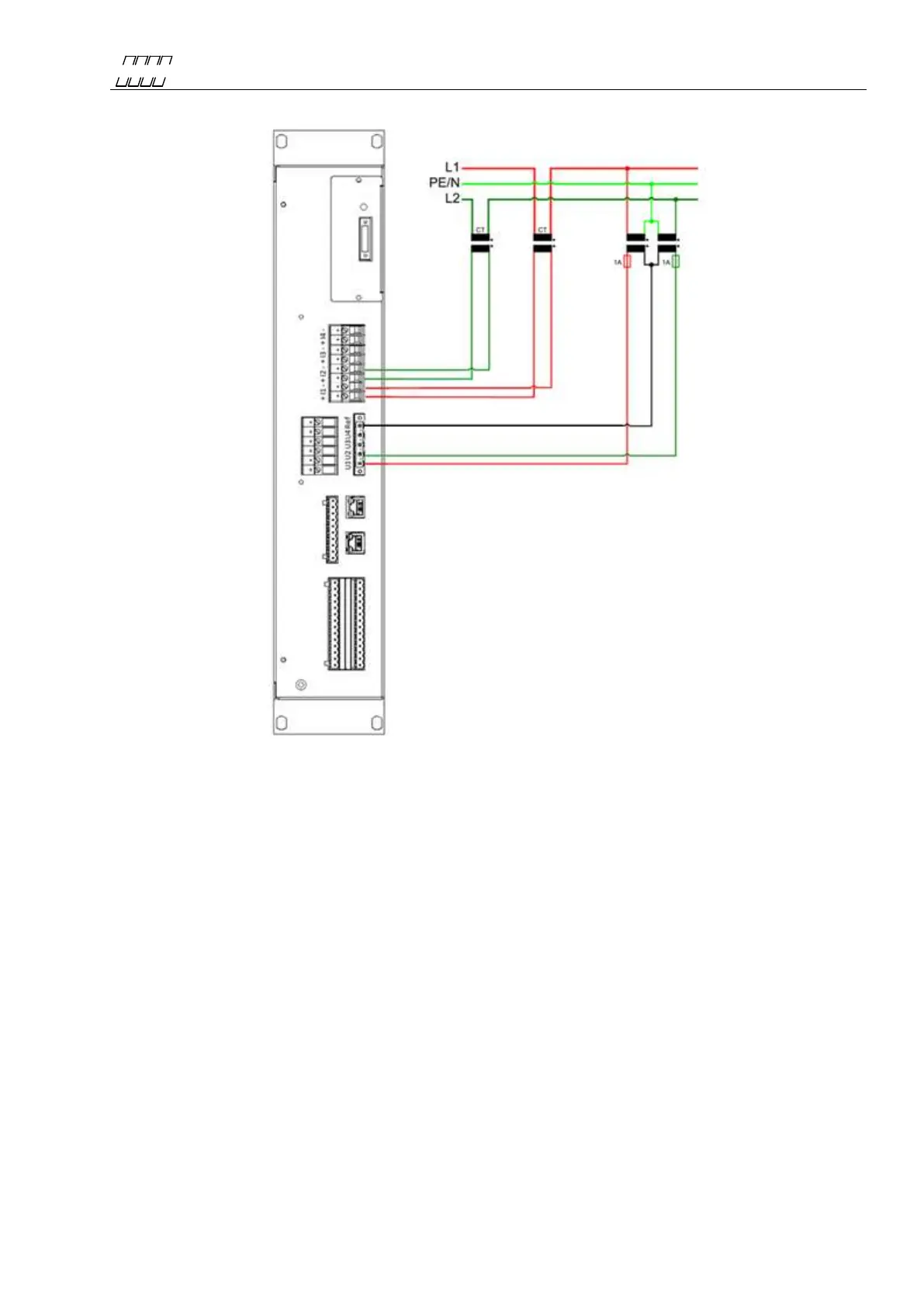

Figure 24
The above wiring diagram is used for
Channel: Measured object: Channel: Measured object:
U1 = L1 I1+ = CT+
Ref = (Neutral) I1- = CT-
