UP-2210R/P Hardware installation and configuration manual
6 Display
On the front side of the UP-2210R there is a display that can show voltage and current values in real-
time. Several parameters can be shown, such as, Voltage values, current values, harmonics, flicker,
power frequency etc. In Figure 36 a vector diagram for voltages currents are shown. The values are
also shown on the left side on the display.
Note that it is not possible to change any settings in the instrument via the display. This is due to
safety precautions. Only authorized personnel should be able to make changes.

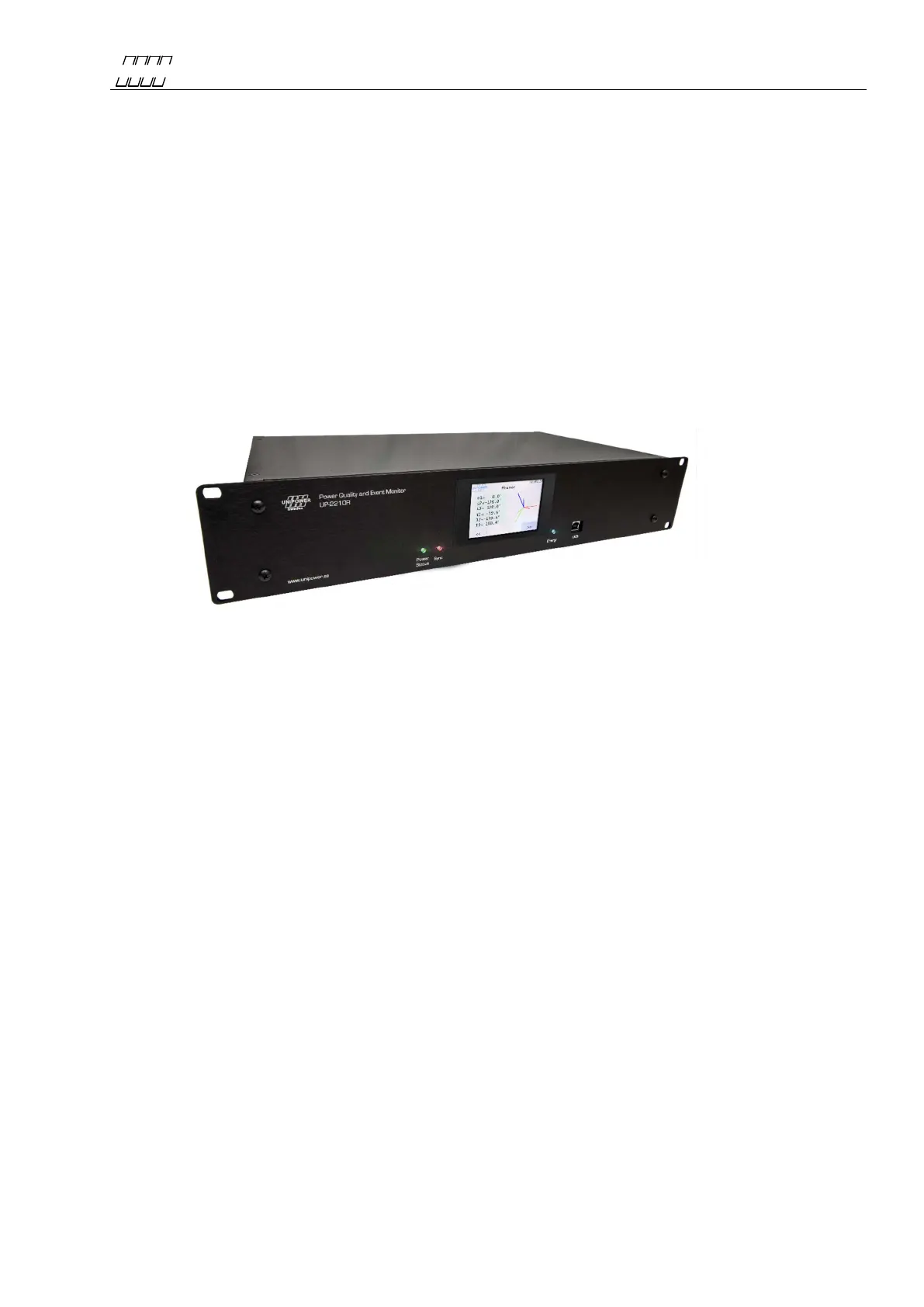

Figure 36
