UNIPOWER
UP-2210R/P Hardware installation and configuration manual
33
4.4.16 SP 2CT DV
Figure 25

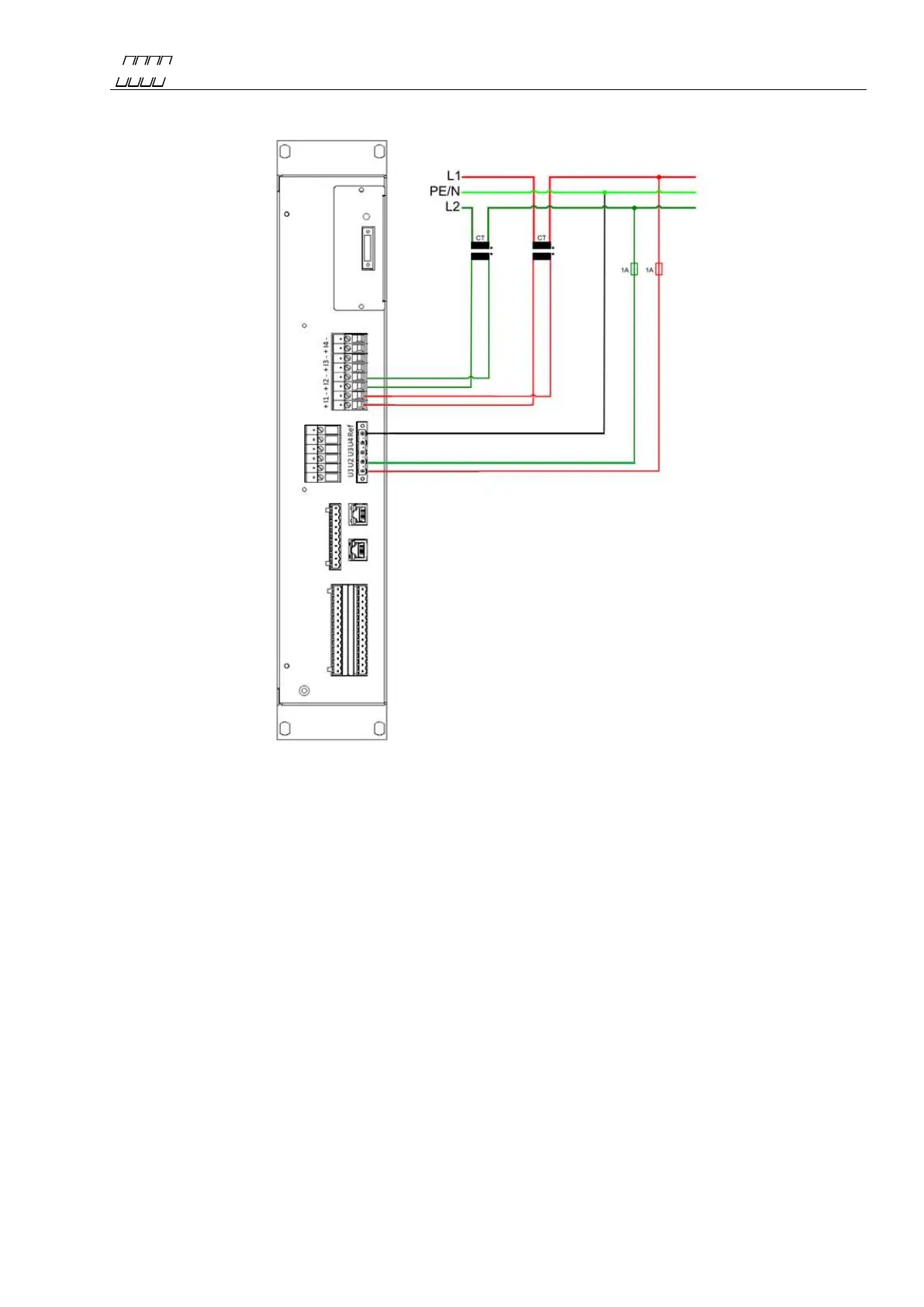

The above wiring diagram is used for
Channel: Measured object: Channel: Measured object:
U1 = L1 I1+ = CT+
Ref = (Neutral) I1- = CT-
