54
Servicemanual_UR3
_en_rev3.
1.2
4.

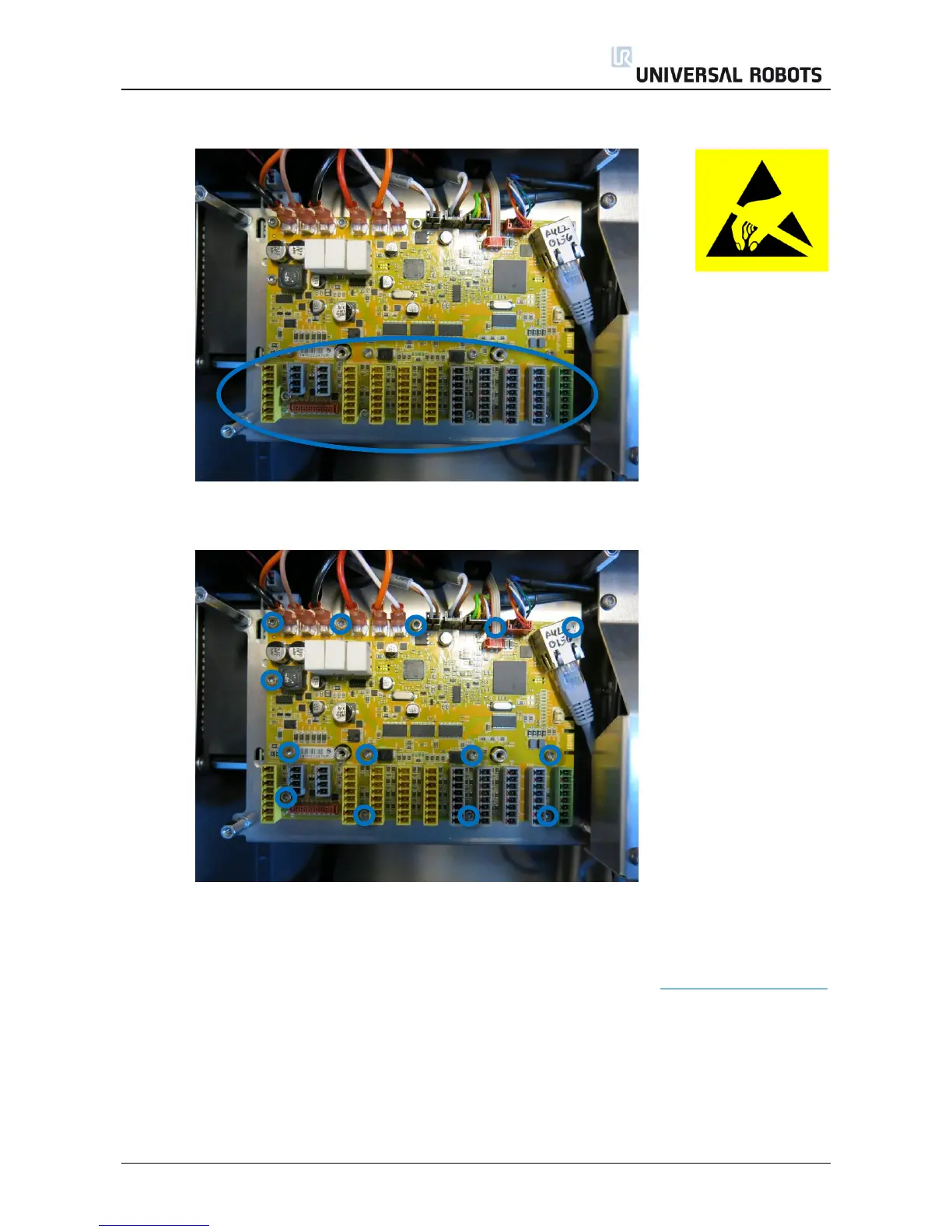

Carefully remove all plug
s and connectors.
5.
Remove 14 screws holding
the Safety Contr
ol Board.
6.
Replace Safety Control Boa
rd with new one and tighten the
14
screws to h
old the board
7.
Insert all connectors and pl
ugs in correct p
ositions. Eventua
lly see section
5.4.1 S
chematic overvi
ew
8.
Carefully attach the alumin
um cover, make sur
e to moun
t it correct and fix it with
t
he 5 screws.
53
55
