Hardware Descriptions
A3800169 Digital Thermostat
(T-169)
The Digital Thermostat shows the
current room temperature, set
temperature, or relative humidity on
the display. Temperature settings are
adjusted using the buttons on the
side of the thermostat.
Main Features
• Power saving e-paper display (updates every 10
minutes)
• Displays Fahrenheit or Celsius
• Operative sensor for increased comfort
• Calibration of displayed room temperature
• Heating/cooling demand as well as low battery
indication on display
• Displays Uponor logo and software version during power
up sequence
• Setpoint range is 41 – 95°F (5 – 35°C); maximum and
minimum setting may be limited by system settings
• Enhanced room temperature control with use of optional
floor sensor
• Displays optional temperature sensor values if sensors
are connected and relevant functionality is activated
• Switch between Comfort and ECO mode with scheduling
(requires Smatrix Pulse App)
• Adjust ECO setback value
• Relative humidity limit alarm indicated in display
(requires Communication Module)
• Invert display color
• Communication distances up to 98 ft. (30 m) away from
the controller
Included Components
• Digital Thermostat (T-169)
• Wall bracket
• Adhesive tape
• Battery (CR2023 3V)
• Mounting hardware (for wall bracket)
A3800161 Mini Sensor (T-161)
The Mini Sensor is a small, simple
thermostat with no display or
buttons. Use this in rooms for discreet
temperature monitoring without
the need for local temperature
adjustment.
Main Features
• Operative sensor for increased comfort
• Adjust setpoint temperature via the Smatrix Pulse App
(requires Communication Module)
• Setpoint range is 41 – 95°F (5 – 35°C); maximum and
minimum setting may be limited by system settings
• Optional floor temperature sensor (connected to the
thermostat); floor temperature settings (maximum/
minimum) only available using the Smatrix Pulse App
(requires Communication Module); otherwise, uses
system defaults
• Relative humidity limit indicated in Smatrix Pulse App
(requires Communication Module)
• Communication distances up to 98 ft. (30 m) away from
the controller
Included Components
• Mini Sensor (T-161)
• Wall bracket
• Adhesive tape
• Battery (CR2023 3V)
• Mounting hardware (for wall bracket)

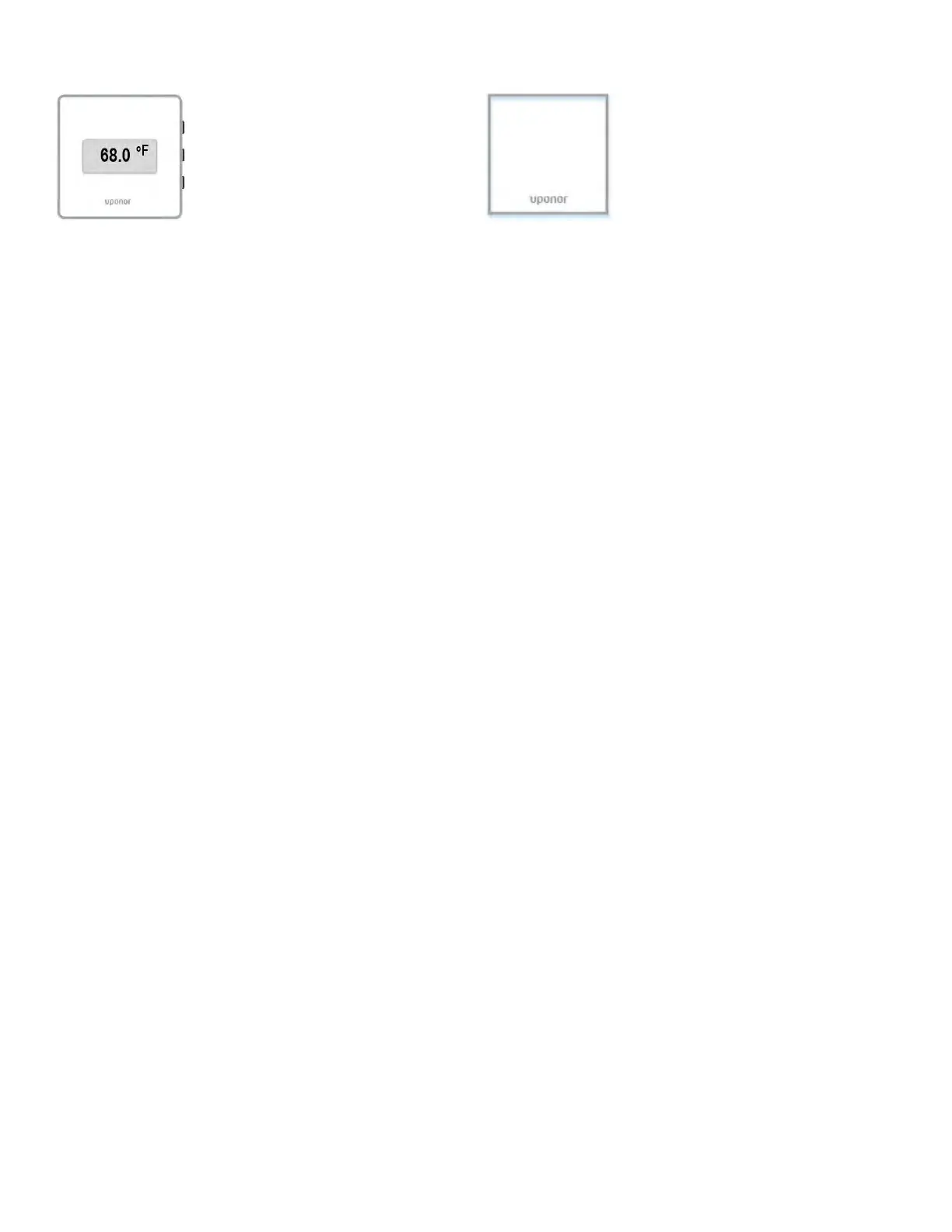

Figure 3-2:
A3800169 Digital
Thermostat
(T-169)
Figure 3-3:
A3800161 Mini
Sensor (T-161)
