Upright AB38 Service & Parts Manual

Maintenance
Section
4-11AB38 Work Platform

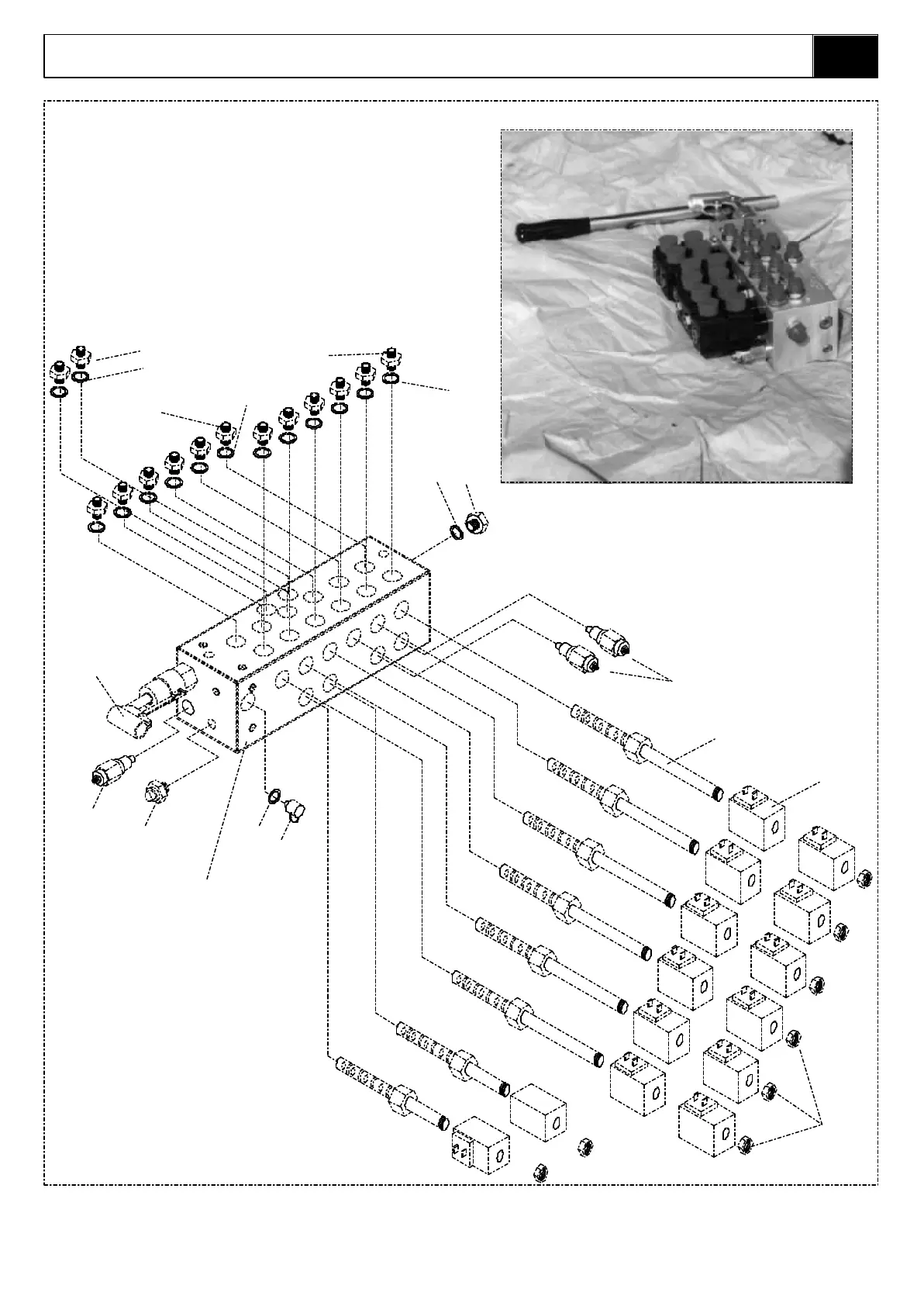

Figure 4-9: Manifold Block Components
1. Valve Block
2. Solenoid Valve
3. Coil
4. Locking Nut
5. Fitting, straight
6. Bonded Washer
7. Pressure Reduction Valve
8. Main Relief Valve
9. Pressure Test Point
10. Telescopic Retraction Valve
11. Cross Line Relief Valves
4.8
Refer to Page 7-20 for part numbers
1
2
3
4
5
6
6
5
5
6
56
9
67
8
10
11
