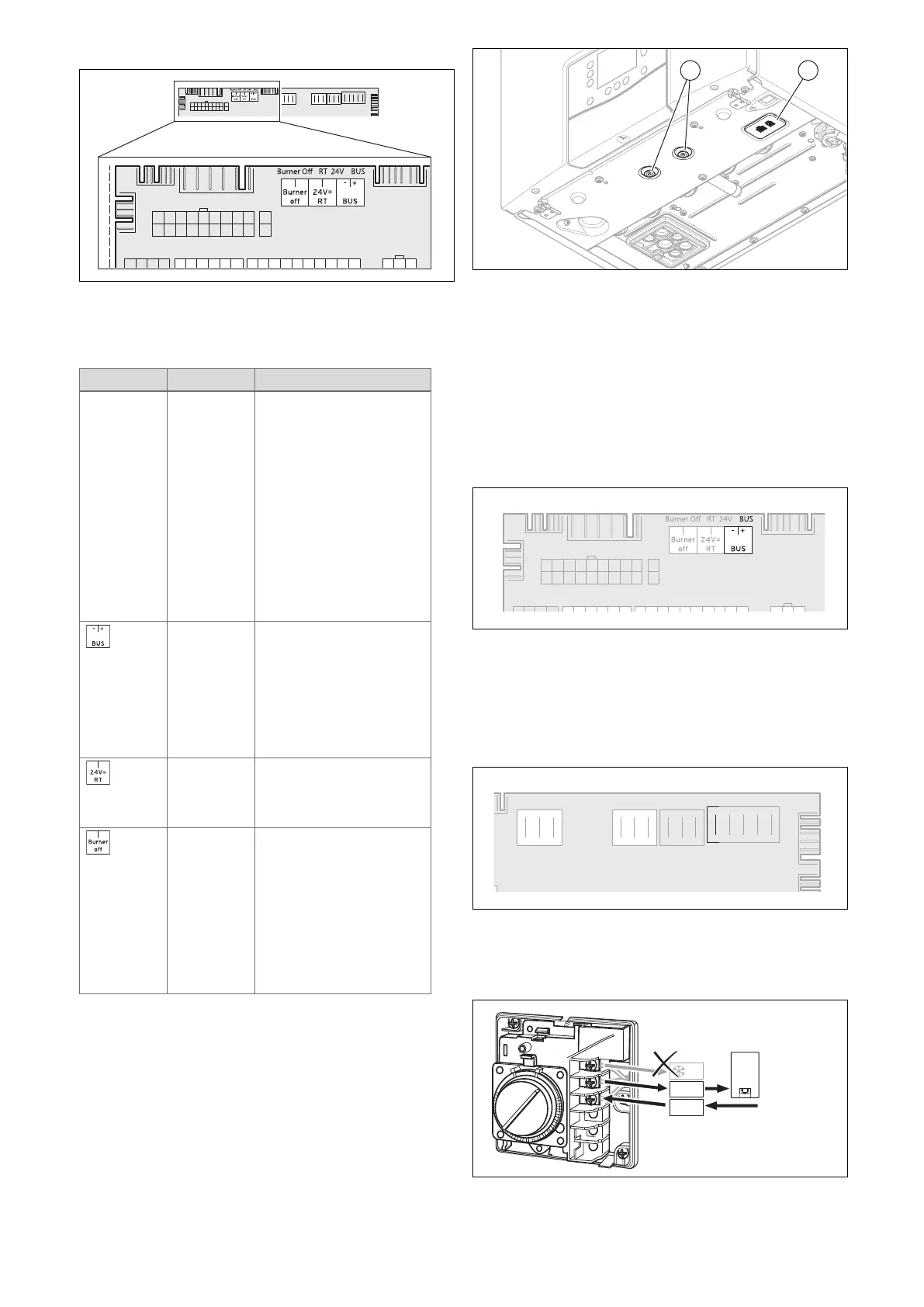

30 Installation and maintenance instructions 0020308121_04
Low voltage connection area (SELV)
X
31
X32
a
X12b
X1
CH Pump
RT 230V Mains
X19
X41X36
X100
Opt 1
X16
Fan
X11
X24
X20
X31
X32
X41X36
X100
X24
X20
General eBUS interface for controls
24 V thermostat
Limit thermostat
Slot Item Function
X100 Caution.
Risk of material damage
caused by incorrect installa-
tion.
Mains voltage at incorrect
terminals and plug terminals
may destroy the electronics.
Do not connect the mains
voltage to the eBUS termin-
als (+/-) or to the other ter-
minals at X100.
Connect mains voltage
only to the terminals that are
marked for this.
X100 Bus connection control
Vaillant control with eBUS
communication can be con-
nected to this slot.
Note
When using the eBUS, the
bridge at the 24 V RT plug
must be inserted.
´X100 24 V DC room thermostat
Prerequisite: You are not us-
ing an eBUS control and the
existing bridge is removed.
X100 Burner off / limit thermostat
Separate protective thermo-
stat contact, independently
of the eBUS and 24 V RT.
Use when protecting against
overheating for underfloor
heating and/or low-temperat-
ure systems.
Prerequisite: Remove the
bridge.
Additional connection options
Communication unit (gateway module)
Interface (Customer Interface Module)
12
The interface (1) and the bracket (2) are located below the
product. A control module can be installed and connected
here. The slot includes the power supply and the eBUS com-
munication for the gateway.
7.10.9 Control systems
7.10.9.1 Room control (connection)
The product can be combined with various room controls.
7.10.9.1.1 eBUS room controls
X31
X32
X41X36
2
X24
X20
X100
Room controls which use eBUS are connected to this
interface. The interface supplies the control with electricity
and is also used for signal communication.
7.10.9.1.2 Traditional room controls
Option 1: 230 V room thermostat
2
aX12b
X1
CH Pump
RT 230V Mains
X19
Opt 1
X16
Fan
X11
A 230 V room thermostat can be connected to this single-
pole interface. Only the phase switched by the thermostats
is connected. The room thermostat must be given a separate
external 230 V power supply.
N
L
N
230 V ext.
