7Installation instructions for the electronicVED plus electric instantaneous water heater 0020149585_00
4 Installation
a
Risk of death!
Risk of death due to improper installation!
All work involved in the installation, start-up,
maintenance and repair of the electronicVED
plus electric instantaneous water heater must
only be carried out by a recognised compe-
tent person, who also assumes the responsi-
bility for installing the unit properly and
commissioning it for the first time. The
electronicVED plus electric instantaneous
water heater must be installed in strict com-
pliance with these installation instructions.
i
Flush the cold water pipes thoroughly before
installation.
4.1 Scope of delivery
> Check that the scope of delivery is complete (see
tab. 4.1).
6
2
1
7
3
4
5
390
322
Hot water connection
Cold water connection
Bottom
electrical connection
As required:
Additional fixing point for back wall
Installation template
for VED
100
Top electrical connection
170
Mounting plate
Fixing points

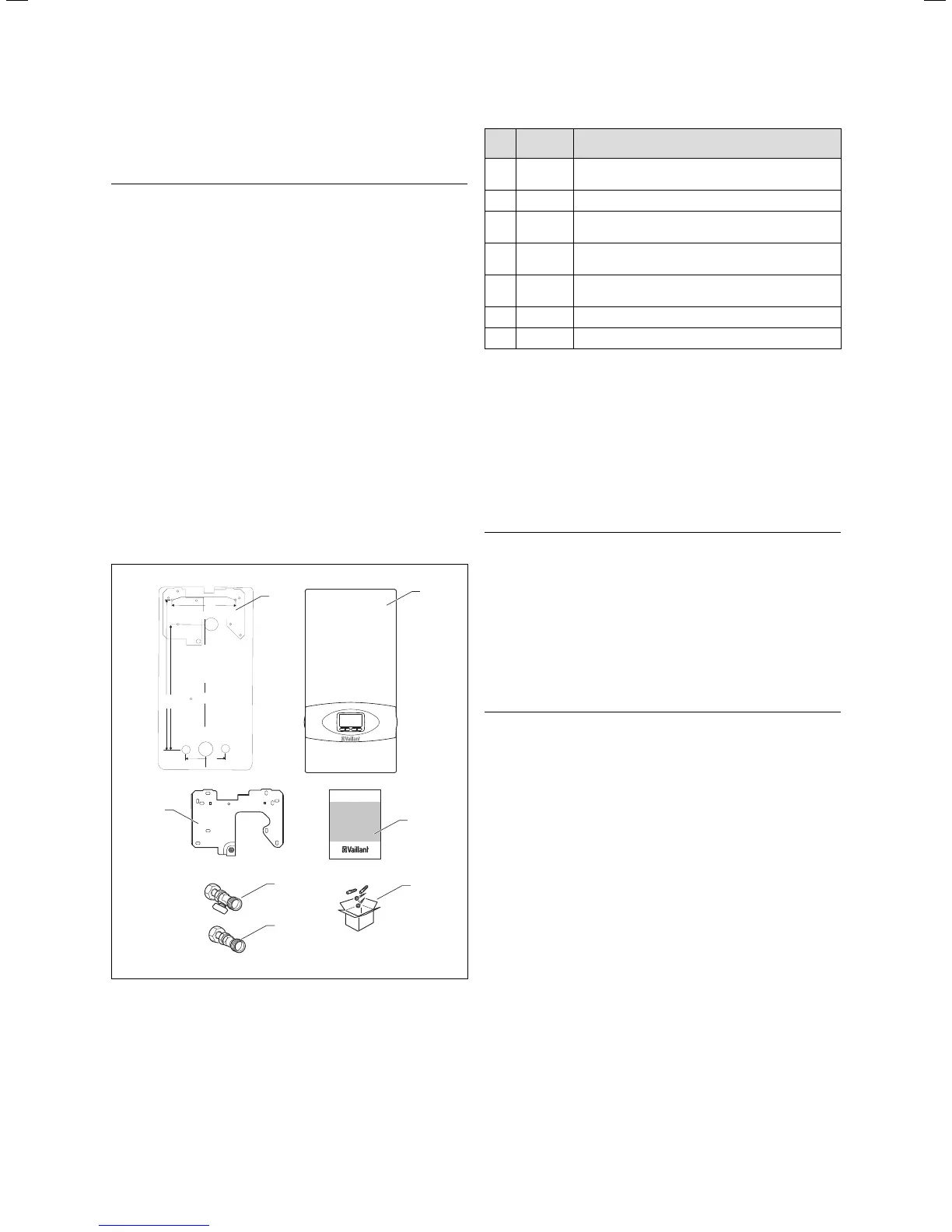

Fig. 4.1 Scope of delivery
No. Quantity Name
11
electronicVED plus electric instantaneous water
heater
2 1 Operating and installation instructions
31
Box containing fixings (2 bolts, 2 rawl plugs,
1 seal, 1 special fixing screw)
41
Cold water connection piece R 1/2 with a cold
water stop valve
51
Hot water connection piece R 1/2 supplied in the
box
6 1 Installation plate
7 1 Installation template
Tab. 4.1 Scope of delivery
The electronicVED plus electric instantaneous water
heater is completely pre-assembled. Once the unit has
been fitted to the wall, only the water and electrical
installation needs to be completed.
4.2 Installation site
b
Caution.
Risk of frost damage to the unit.
If an electronicVED plus electric instantane-
ous water heater is placed out of operation
for a relatively long period of time in an
unheated room in cold weather, the water in
the unit and pipes may freeze. This results in
damage to the unit.
> Install the unit in a permanently frost-free
room.
i
The electronicVED plus electric instantaneous
water heater meets the current safety regula-
tions for protected zone 1 and can therefore
also be installed above the bath or in a
shower area.
> Wherever possible, install the unit near the draw-off
point that will be most used.
Installation 4
