9Installation instructions for the electronicVED plus electric instantaneous water heater 0020149585_00
4.4.2 Removing the unit cladding
1
3
4
2
5

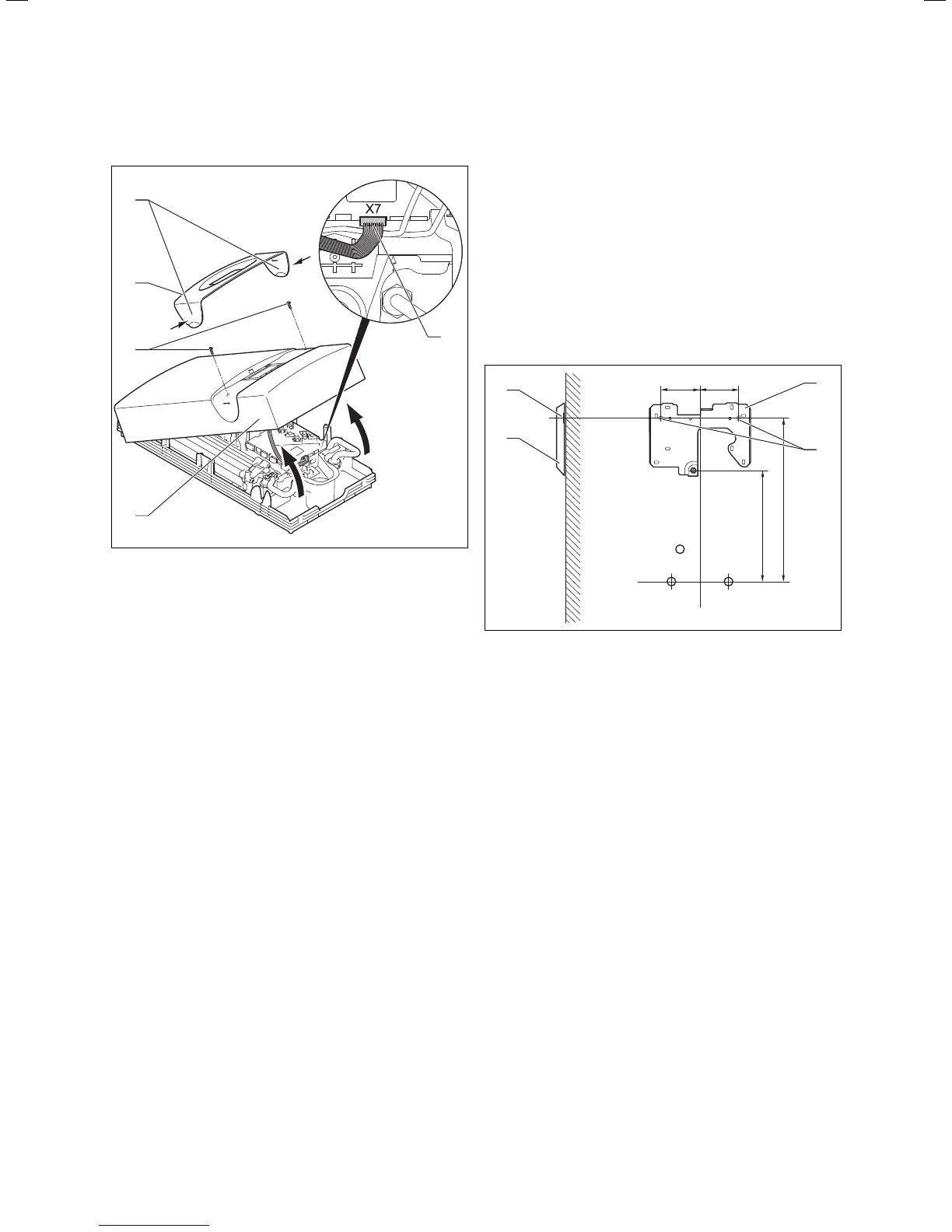

Fig. 4.5 Removing the unit cladding
> Grip the two straps (1) on the panel (2).
> Splay the two straps (pull them away from the unit).
> Remove the panel (2).
> Undo both bolts (3).
> Fold up the cover (4).
> Remove the display plug from the unit's electronics
(slot X7) (5).
> Remove the cover (4) from the unit.
4.4.3 Installing the unit
i
The electronicVED electric instantaneous
water heater must be hung on the wall
vertically.
> Ensure the wall and all fixing elements are able to
bear the load. An electronicVED plus weighs approx.
4.4 kilos when filled with water.
> Using figures 4.2 to 4.4, double check that the desired
installation location meets the requirements.
390
322
8585
2
1
1
2
Fig. 4.6 Fitting the installation plate
> Hold the installation template against the wall and
mark the fixing points.
> Fix the installation plate (1) to the fixing points (2)
using the rawl plugs and bolts.
i
When replacing a unit, you can use the previ-
ous drill holes as long as they are compatible
with the additional holes on the installation
plate.
Installation 4
