12.2. Measurement

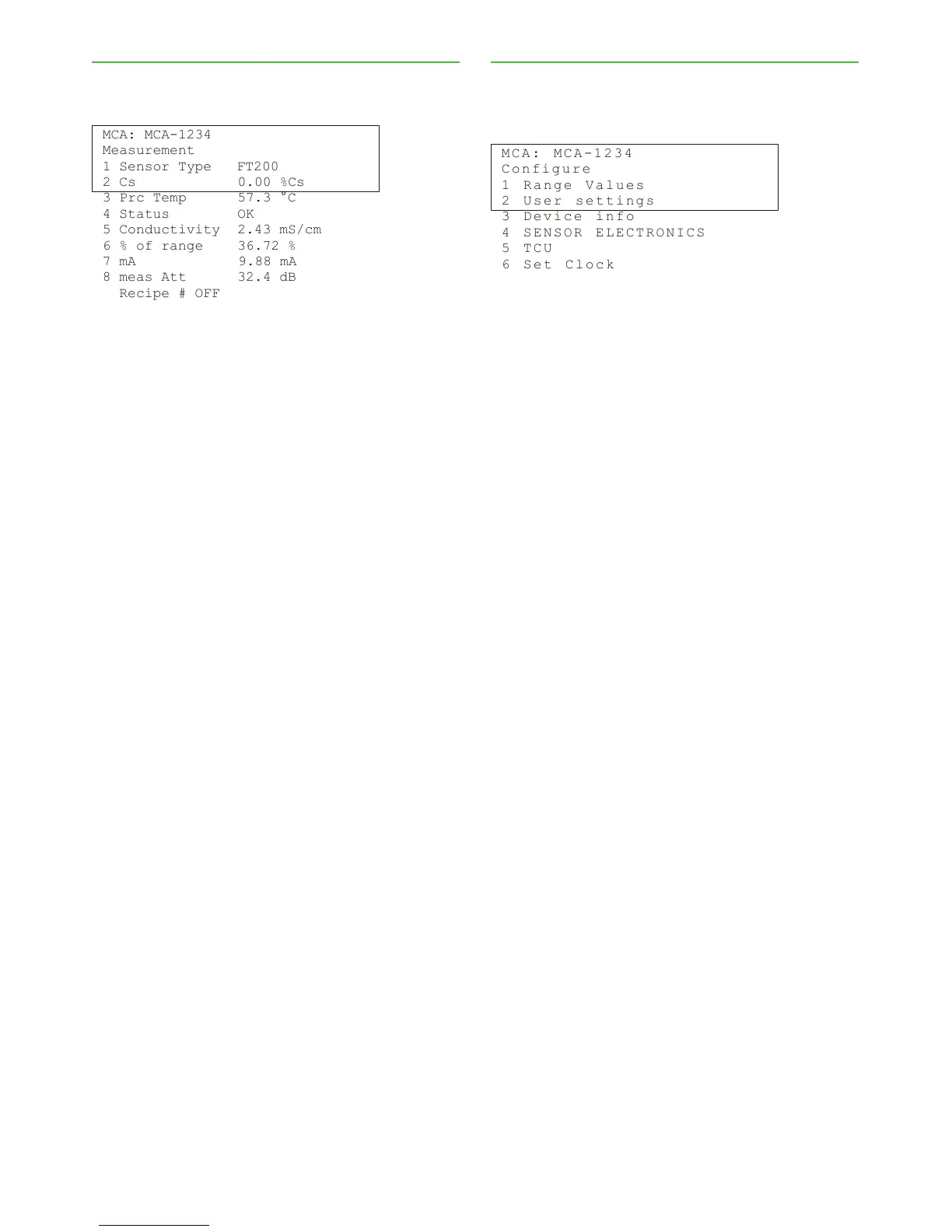

The "Measurement" menu shows the measurement
results from Valmet TS:
MCA: MCA-1234
Measurement
1 Sensor Type FT200
2 Cs 0.00 %Cs
3 Prc Temp 57.3 °C
4 Status OK
5 Conductivity 2.43 mS/cm
6 % of range 36.72 %
7 mA 9.88 mA
8 meas Att 32.4 dB
Recipe # OFF
Sensor Type:
Cs: Measured total solids content.
Prc Temp: Measured process temperature.
Status: Device status (OK, Alarm,...).
Cab Temp: Temperature of sensor electronics.
% of range: Value of total solids current output, as
percentage of the total output range.
mA: Value of total solids current output, in mA.
meas Att: Measured attenuation of microwaves in the
process.
Recipe #: The number of the recipe in use (see section
9.3).
12.3. Configure
In the "Configure" menu you can configure the Valmet
TS current output and some other parameters, and
view device information.
M C A : M C A - 12 3 4
C o n f i g u re
1 R a n g e V a l ue s
2 U s e r s e t t in g s
3 D e v i c e i n fo
4 S E N S O R E L EC T R ON I C S
5 T C U
6 S e t C l o c k
Range values
LowRnge: Total solids content result corresponding
to the low limit (4 mA) of the current signal.
UppRnge: Total solids content result corresponding
to the high limit (20 mA) of the current signal.
Damping: Filtering time of the current signal.
Alarm cur: How the current signal behaves when self-
diagnostics detects an error. Alternatives are 3.7 mA,
22.5 mA, or Hold.
User settings
Trend Int: Sampling interval of the internal trend table.
Pos: Device position.
Lang: Language version of Valmet TS.
Temp unit: Process temperature unit, °C / °F.
Installation & Owner's manual, OUL00489 V2.3 EN
42
Valmet Total Solids Transmitter
