VAMP 220 - Wiring Master Unit Circuit Breaker Trip Circuits

VAMP 220 / 220R Arc protection system
User manual
VAMP Ltd
26
Vamp 24h support phone : +358 (0)40 573 6316
VM220.EN004
X2
X3
X2 is optional
X1
Current Transformer, Trip / Alarm PCB Power , Slave transceiver and BIO PCB
X1-1, X1-2 IL1 X3-1, X3-2 Us (24 Vdc; 1:+, 2:-)
X1-3, X1-4 IL2 / Io X3-3
X1-5, X1-6 IL3 X3-4
X1-7, X1-8 TRIP 1 X3-5, X3-6 +24, GND to Slave
X1-9, X1-10 TRIP2 X3-7, X3-8, X3-9, X3-10 COM
X1-11, X1-12 TRIP3 X3-11
X1-13, X1-14 TEMP / TRIP 4 X3-12 La> in/out
X1-15, X1-16 TRIP ALARM X3-13 Lb>
(I< dependent) out
X1-17, X1-18, X1-19 SF (17-18 NO; 18-19 NC) X3-14 Lc> in
X1-20 X3-15 Ia> out
X3-16 Ib> in/out
X3-17, X3-18 BI/O GND
OPTION PCB Communication to Slave unit VAM 12 CD
X2-1 L> in TR2 X6 VX010
X2-2 I> in
X2-3 L> in TR6
X2-4 L> in
X2-5 I> in
X2-6 L> in TR5
X2-7 L> in
X2-8 I> in
X2-9 L> out
X2-10 I> out
X2-11, X2-12, X2-13 GND
X2-14
X2-15, X2-16 TRIP5
X2-17, X2-18 TRIP6
Us
Pe
+24V
GND
COM
Slave
BIO
Connections
BIO
Connections
TRIP5
TRIP6
IL1
IL2/Io
IL3
TRIP1
TRIP2
TRIP3
TRIP4
TR AL
SF
X6

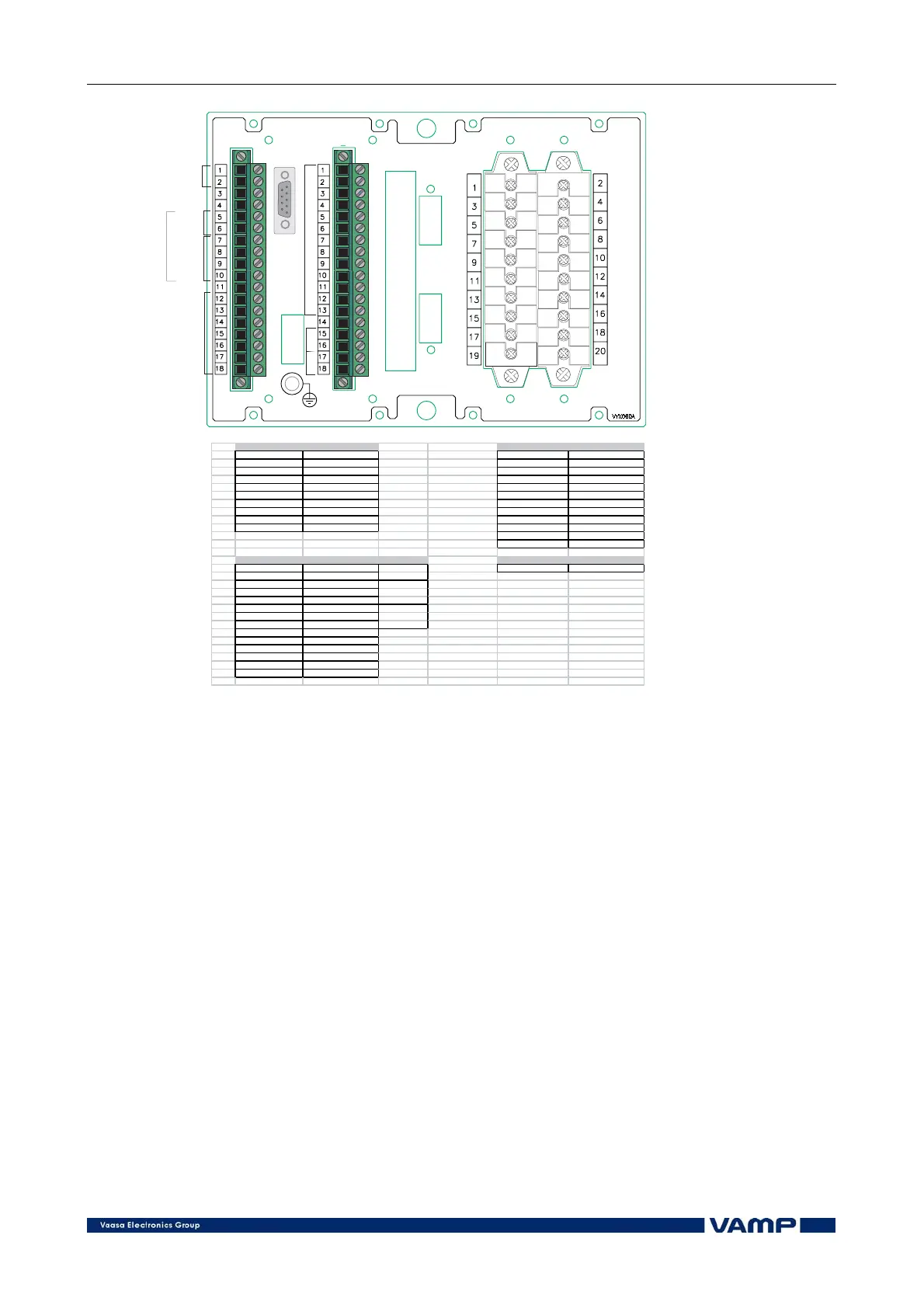

Figure 5.3.3-1 Terminal blocks of the master unit.
5.3.4. Wiring trip circuits of circuit breakers
Connect the circuit-breaker trip circuits to the following
terminals (max. four separate trip outputs):
TRIP1: X1-7, X1-8
TRIP2: X1-9, X1-10
TRIP3: X1-11, X1-12
TRIP4: X1-13, X1-14
The output contact will close within 7 ms at an arc fault,
provided that three-phase current measurement is used.
If TRIP RELAY 3 is programmed for circuit-breaker failure
protection (CBFP) (see section ), the trip signal is obtained
after a set operate time of 80, 100 or 150 ms from the main trip
signal in case the preconditions of an arc fault still exist.
NOTE!
The function of the TRIP3 circuit must be specified when order-
ing.
