9.2. Panel mounting

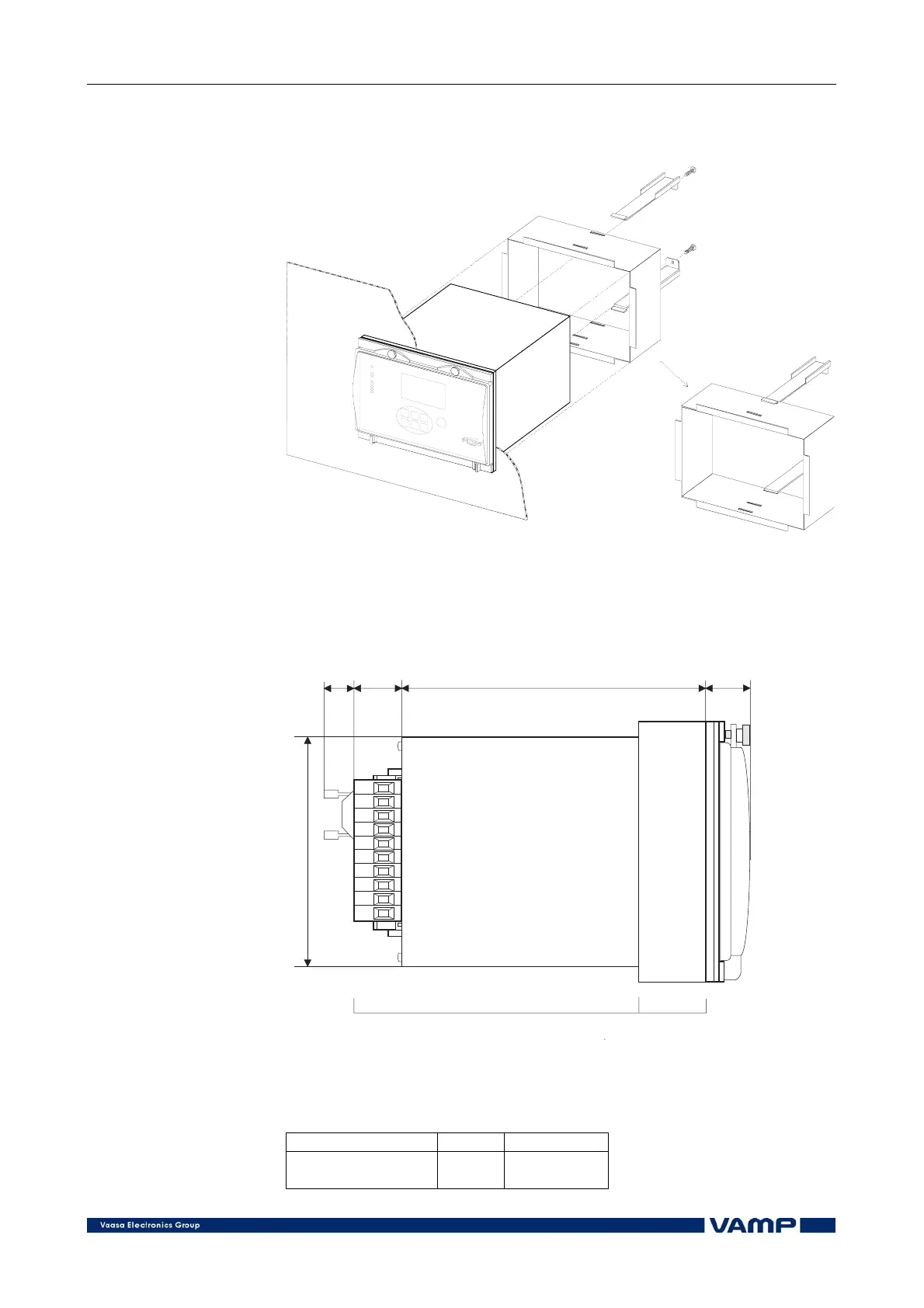

Figure 9.2-1 Flush mounting of protection relay in panel.
9.3. Semi-flush mounting
27.0
181.0
28.0
137.0
P200_semi-flush
b
a
21.0
Figure 9.3-1Semi-flush mounting of protection relay.
Depth with raising frames
Type designation a b
VYX076 40 mm 169.0 mm
VYX077 60 mm 149.0 mm
