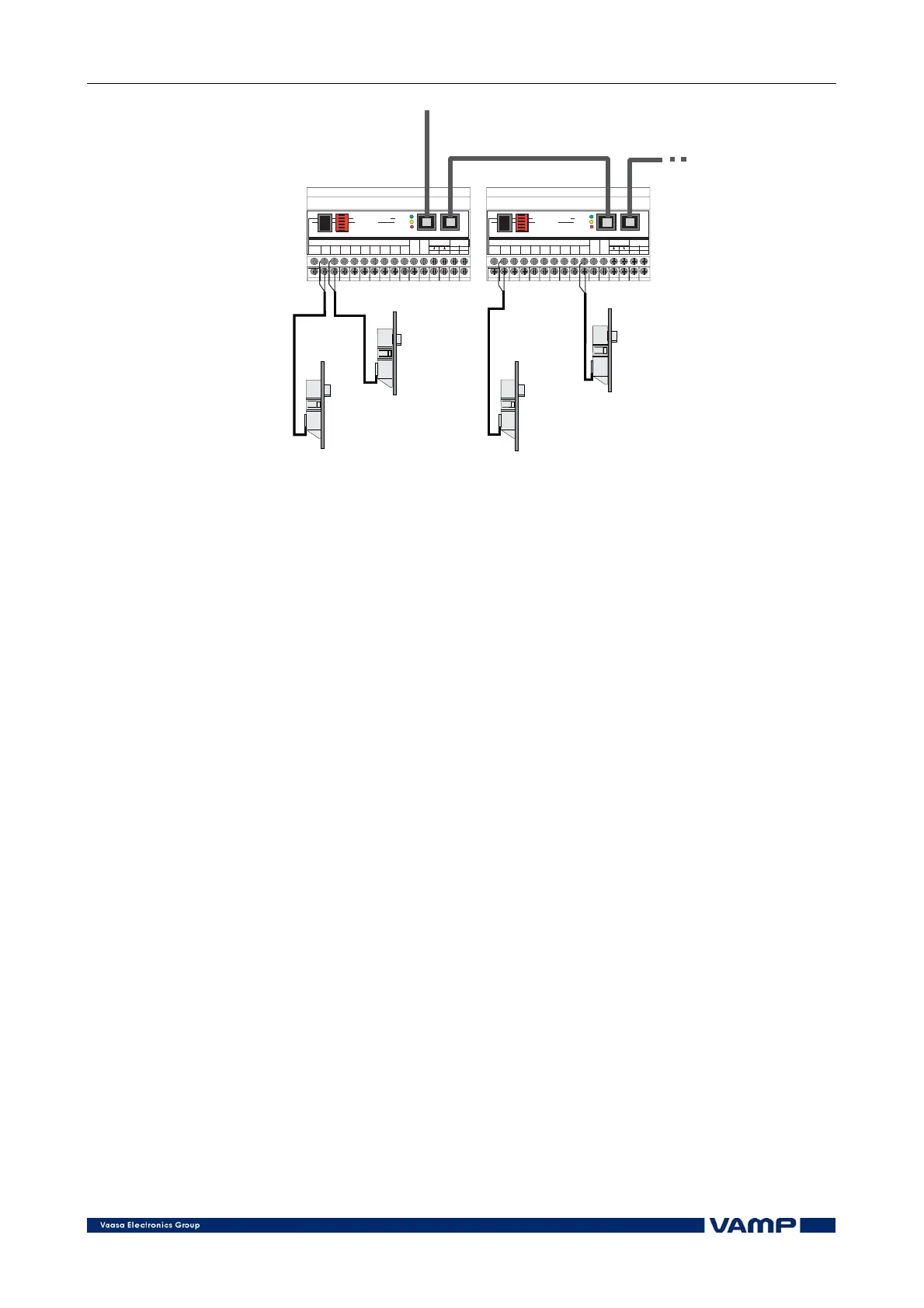

Figure 5.5.2-1 The connection between the sensors and the slave units.
5.5.3. Connecting portable sensor
The portable arc sensor can be connected to any slave unit in
the system. When connected the portable sensor functions as a
part of the arc protection system.
Connect the portable arc sensor to the SENSOR plug-in type
modular connector of the slave.
Attach the sensor to personnel in such a way that the sight
against the working object is free all the time.
NOTE!
Disconnect the portable arc sensor from the slave unit immedi-
ately after use. If the sensor is left connected, it may cause false
activations.
5.5.4. Arc sensor wiring over long distances
If the standard cable of the arc sensor (6 m) is too short, a
shielded arc sensor cable can be used for distances up to 20 m
(arc sensor VA 1 DA -20S).
5.6. Installing trip multiplier VAR 4 CE
If more than four trip outputs are needed at a time, the trip
multiplier relay VAR 4 CE can be used.
Attach the trip multiplier relay to a DIN rail close to the place
where the master unit is mounted.
