VAMP 220 - Function Menu Quick Guide

VAMP 220 / 220R Arc protection system
User manual
VAMP Ltd
40
Vamp 24h support phone : +358 (0)40 573 6316
VM220.EN004
6.1.3. Fast guide of the function menu
RUN
INFO
TEMP SET
TEMP
CURRENT
ERROR
INFO
TEMP SET
ERROR
E
RUN
Use push-button
to reset the arc fault
memory
Total number of
slave units and sensors
INSTALL INSTALL
Use push-button to
set the system configuration
Use push-button to check
the number of sensors
at the slave unit
Slave unit No. /
number of sensors
Tem p. alarm setpoint
per slave unit 0...99°C
Slave No. / Temp.
setpoint display
Use push-buttons to set
the temperature alarm
setpoint of the slave units
Use push-button to accept
the set value
Slave unit No. / Temp
actual value display
Start current setting
& actual current
display (L1 , L2 & L3)
Use knob to set the
start current value
Slave unit No. /
internal fault code
Use push-button to reset
internal fault memory one
fault code at a time
Information about
3 last arc activations
(slave and sensor No.)

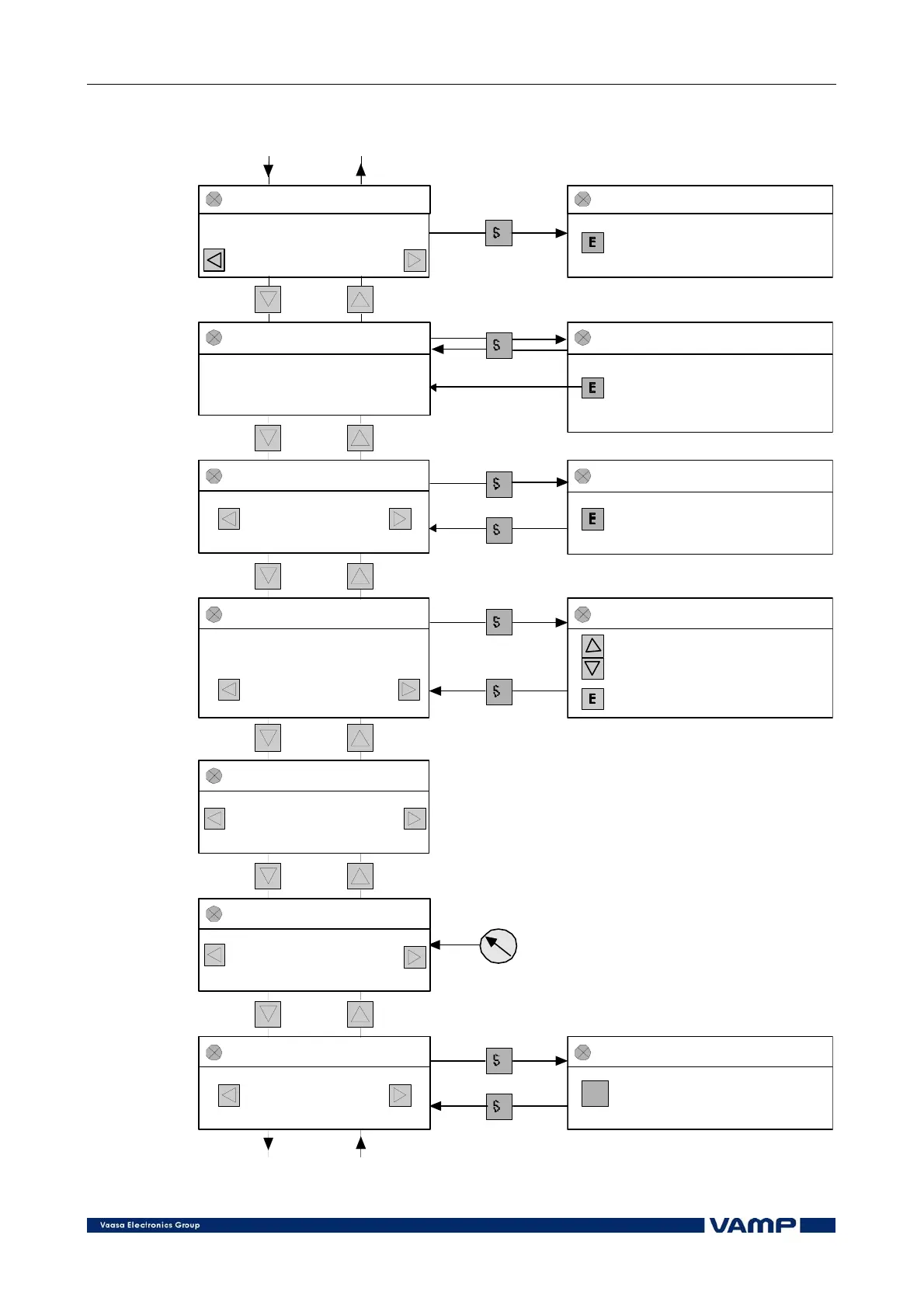

Figure 6.1.3-1 Function menu chart.
